Actuator Test Reference Table

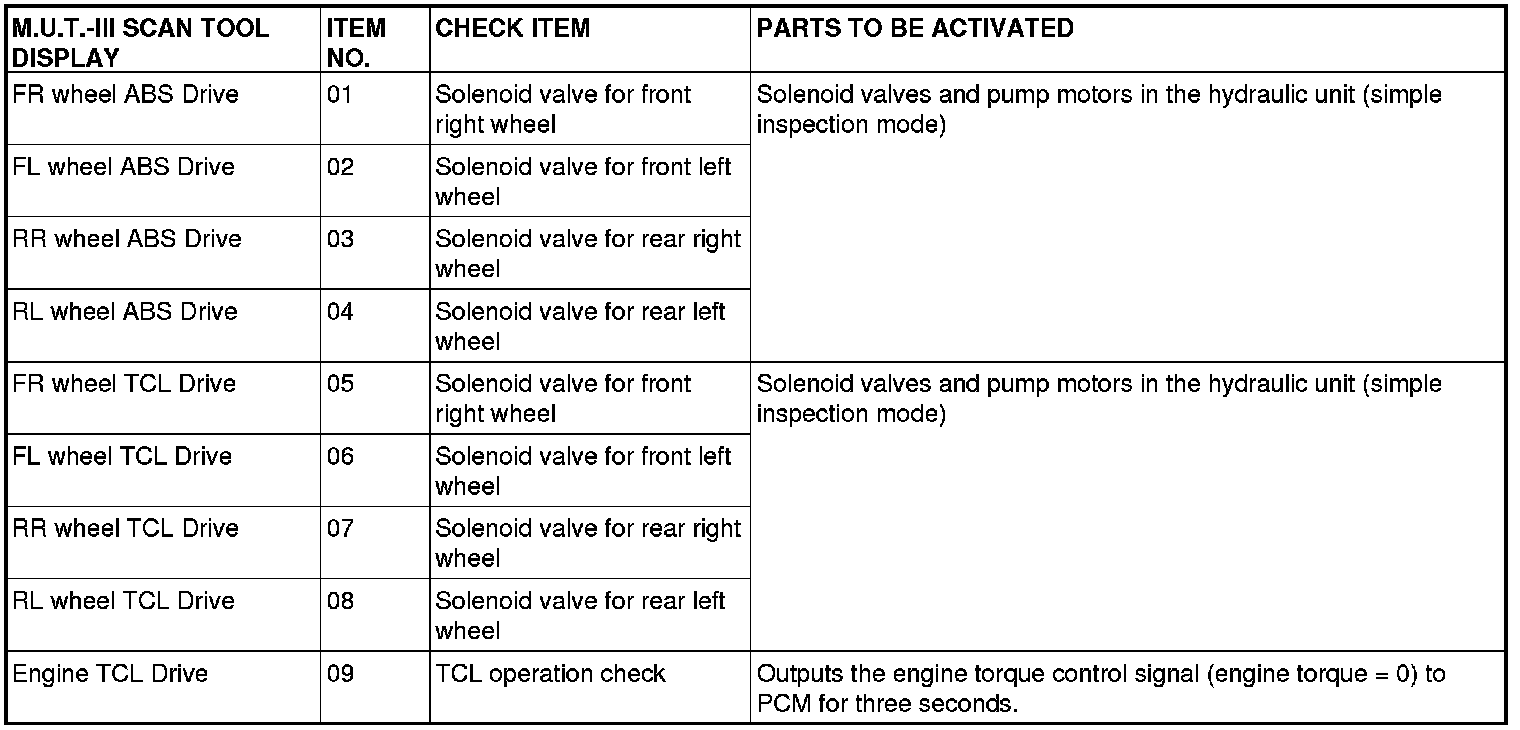

ACTUATOR TEST REFERENCE TABLE

The scan tool activates the following actuators for testing. (Refer to Reading and Clearing Diagnostic Trouble Codes).
