Ambient Temperature Sensor / Switch HVAC: Service and Repair
REMOVAL AND INSTALLATION
REMOVAL SERVICE POINT

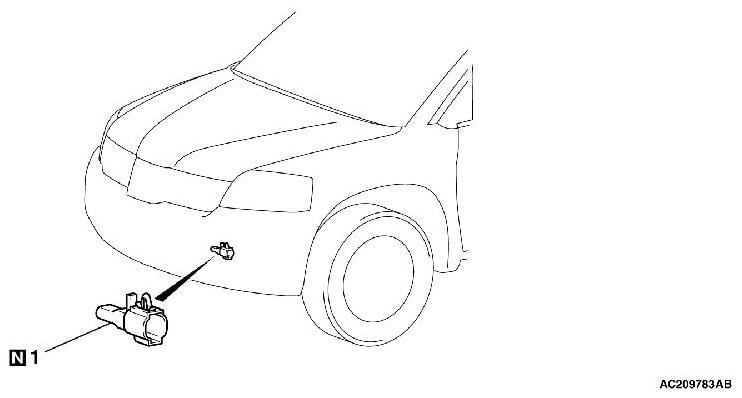

[[A]] AMBIENT AIR TEMPERATURE SENSOR REMOVAL

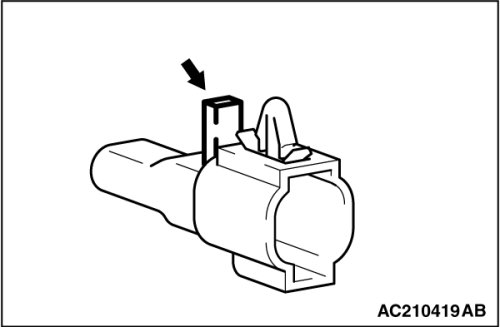

To remove the ambient air temperature sensor, break off the tab as shown.
