Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2011
>>
Endeavor AWD V6-3.8L (6G75)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Cabin Temperature Sensor / Switch
>>
Testing and Inspection
>>
Power Relay Check
Power Relay Check
POWER RELAY CHECK

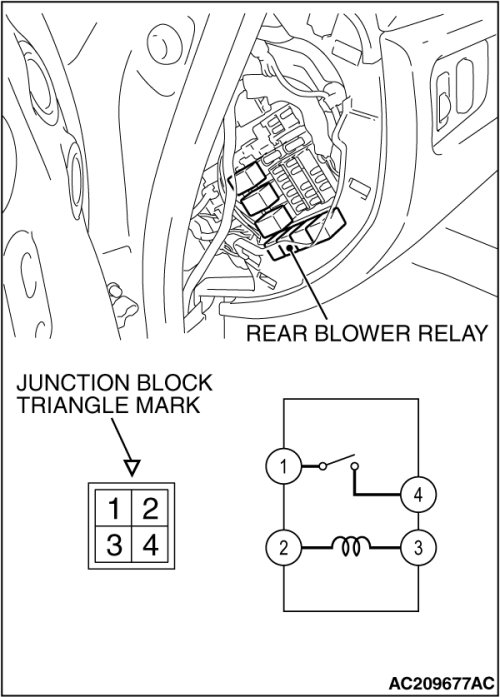

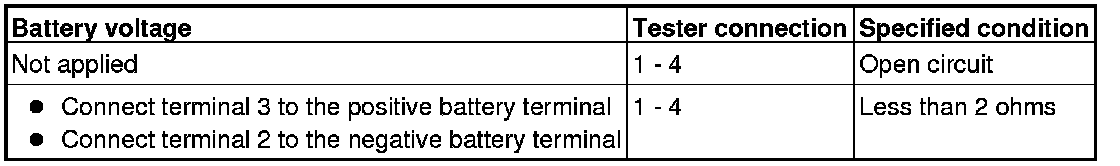

REAR BLOWER RELAY CONTINUITY CHECK
