Scheduled Maintenance Table

SCHEDULED MAINTENANCE TABLE

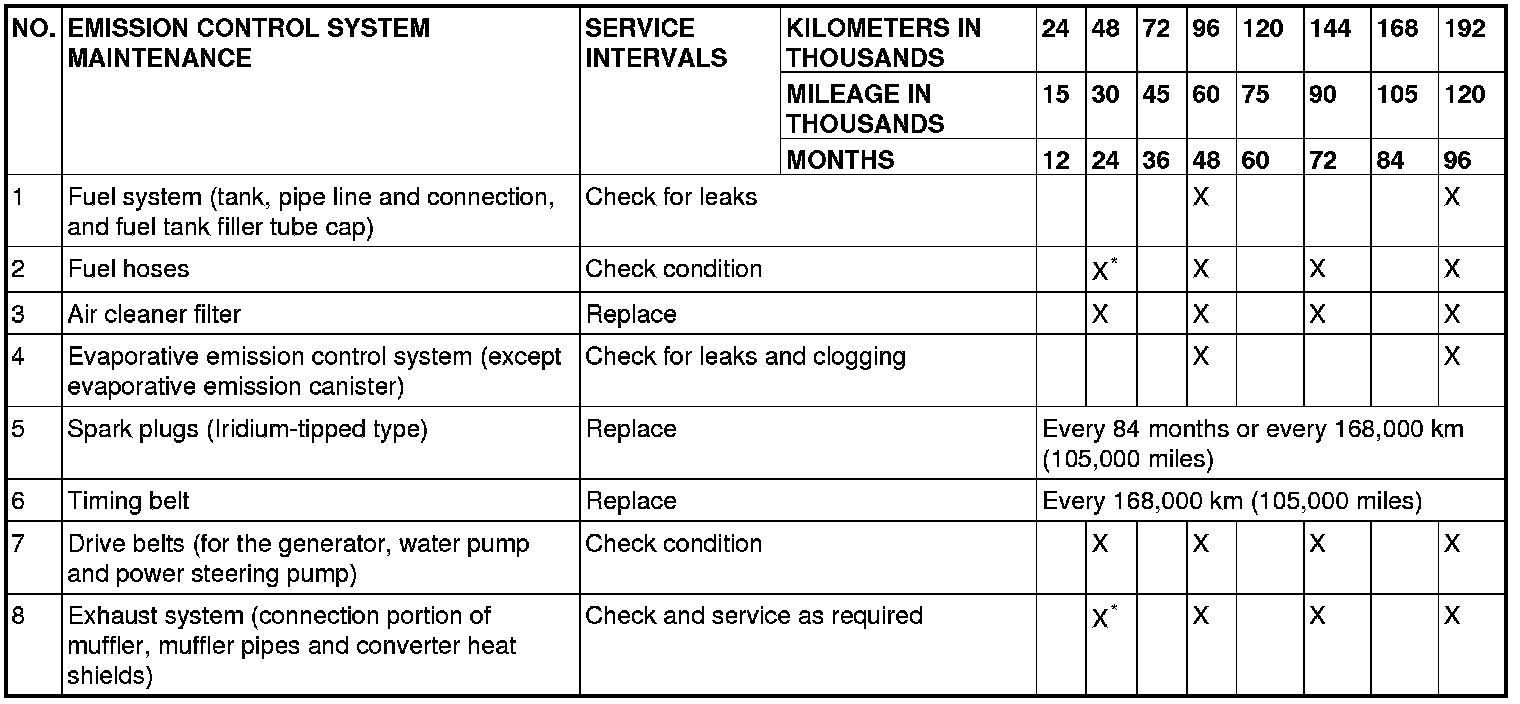

SCHEDULED MAINTENANCE SERVICE FOR EMISSION CONTROL AND PROPER VEHICLE PERFORMANCE

Inspection and service should be performed any time if a malfunction is observed or suspected.






NOTE:
*: This maintenance is recommended but is not required to maintain the emissions warranty.

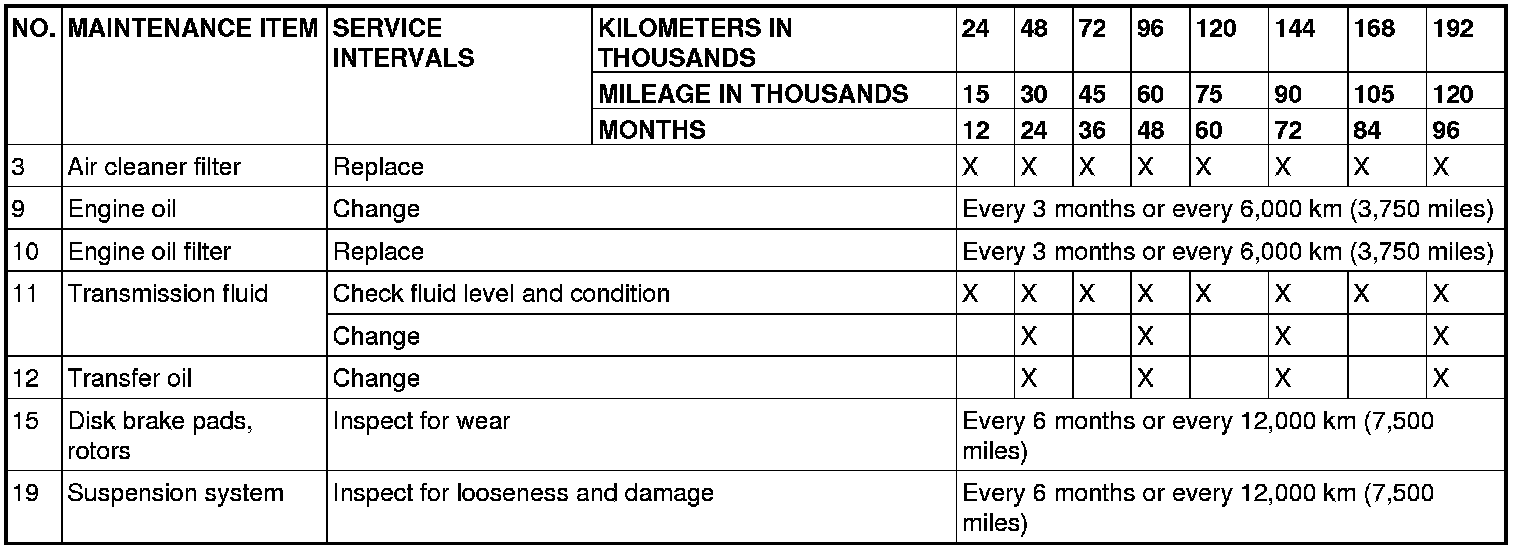

GENERAL MAINTENANCE SERVICE FOR PROPER VEHICLE PERFORMANCE





NOTE:
*: This maintenance is recommended but is not required to maintain the emissions warranty.

SCHEDULED MAINTENANCE UNDER SEVERE USAGE CONDITIONS

Maintenance should be carried out according to the following table:





Severe usage conditions:
1. Driving on dusty, rough, muddy or salt-spread roads

2. Towing or police, taxi or commercial operation

3. Extensive idling and/or low speed operation

4. Repeated short-trip operation at freezing temperatures (engine not thoroughly warmed up)

5. Extended use of brakes while driving

6. Driving in sandy areas

7. More than 50% operation in heavy city traffic during hot weather above 32°C (90°F)
