Cylinder Head Assembly

Cylinder Head Bolts

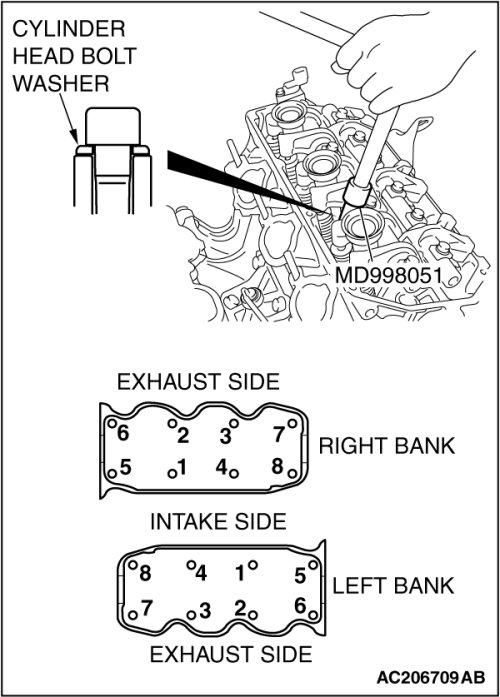

Tighten the bolts to the specified torque in the order shown in the illustration. (in two or three cycles)
First step 108 ± 5 Nm (80 ± 3 ft-lb)
Second step 0 Nm (0 in-lb)
Third step 108 ± 5 Nm (80 ± 3 ft-lb)

Cylinder Head Inspection

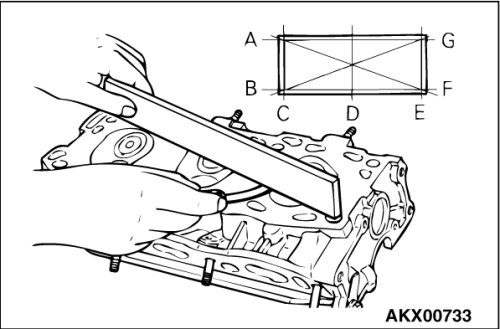

Check the cylinder head gasket surface for flatness by using a straightedge in the directions of A through G shown in the illustration.

Standard value Less than 0.03 mm (0.001 inch)
Limit 0.2 mm (0.007 inch)

If the service limit is exceeded, correct to meet the specification.

Grinding limit *0.2 mm (0.007 inch)

*If the service limit is exceeded, correct to meet the specification.

Cylinder head height (specification when new) 120 mm (4.7 inches)

Intake Manifold Fasteners Specifications

Exhaust Manifold Fasteners Specifications

Camshaft Sprocket Bolts Specifications
