Component Tests and General Diagnostics




CRUISE CONTROL SYSTEM COMPONENT CHECK

CRUISE CONTROL SWITCH CHECK

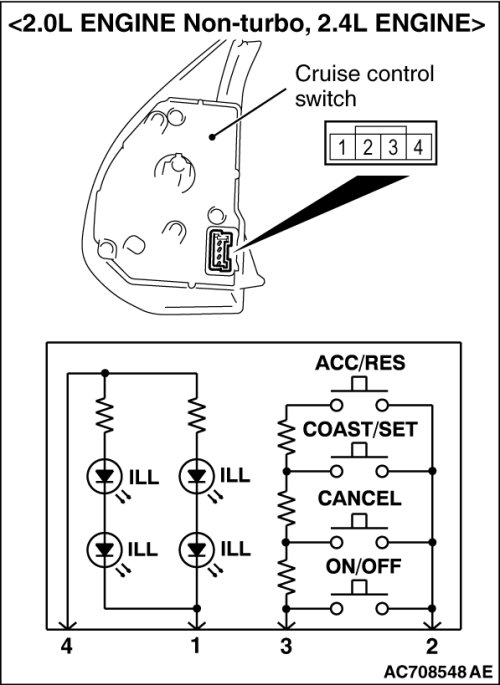

1. Remove the cruise control switch (Refer to Service and Repair) [2.0L ENGINE Non-turbo, 2.4L ENGINE]

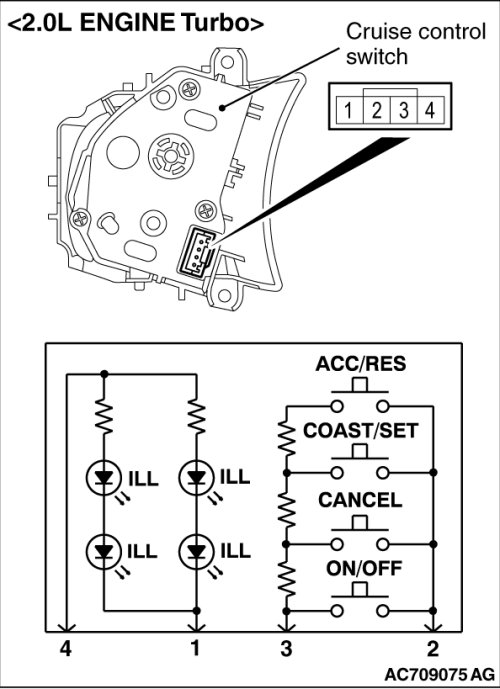

or (Refer to Service and Repair) [2.0L ENGINE Turbo.]

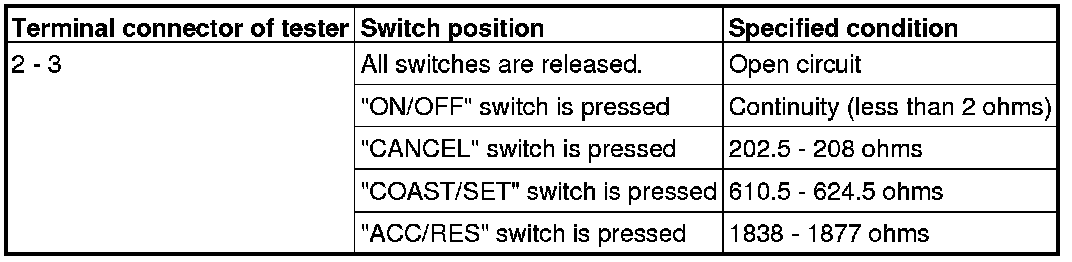

2. Measure the resistance between terminal number 2 and terminal number 3 when each of the
"ON/OFF", "CANCEL", "COAST/SET" and "ACC/RES" switches is pressed. If the values measured at the time each switch is pressed correspond to those in the table below, the resistance values are correct.





3. Check that the cruise control switch illuminates when a positive battery terminal is connected to the connector terminal number 4, and terminal number 1 is grounded.

STOPLIGHT SWITCH CHECK

Testing and Inspection.

CLUTCH SWITCH CHECK [M/T]

.

TRANSMISSION RANGE SWITCH ("N" POSITION) [CVT]

.

THROTTLE ACTUATOR CONTROL MOTOR

[2.0L ENGINE Non-turbo.]

Testing and Inspection [2.0L ENGINE Turbo.]

[2.4L ENGINE.]
