Continuously Variable Transmission/Transaxle, CVT
Continuously Variable Transmission/Transaxle, CVT

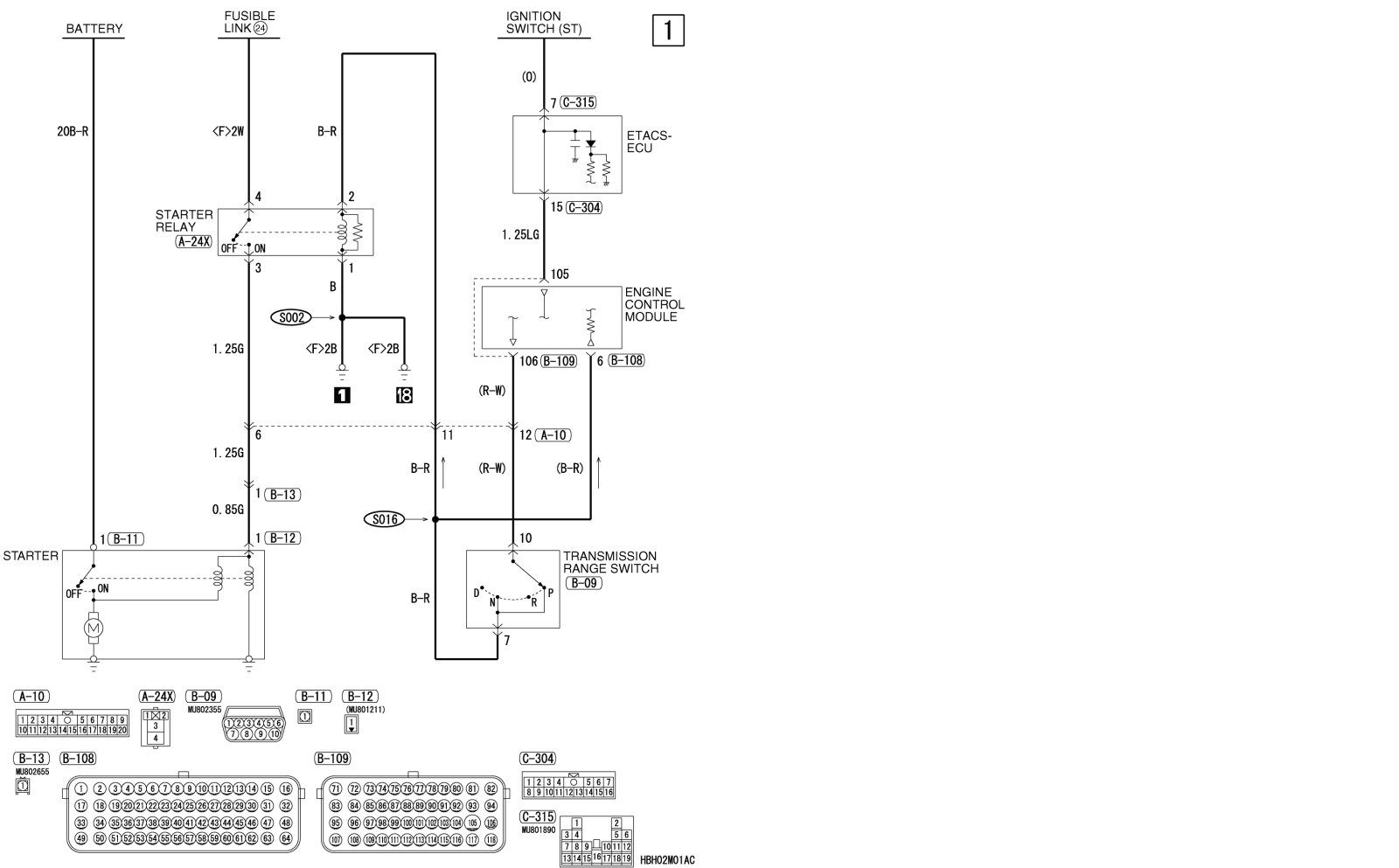

STARTING SYSTEM
[CVT]
