Removal and Replacement

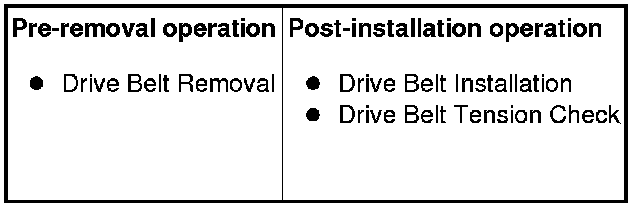

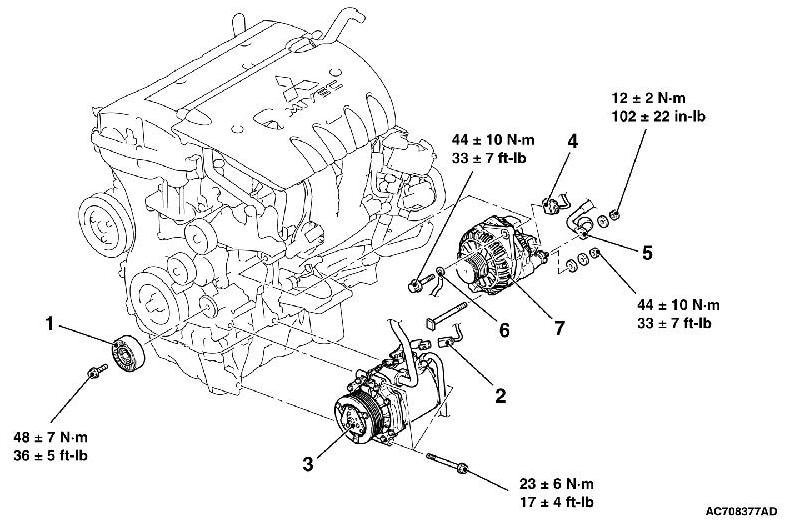

REMOVAL AND INSTALLATION [2.0L ENGINE NON-TURBO, 2.4L ENGINE]

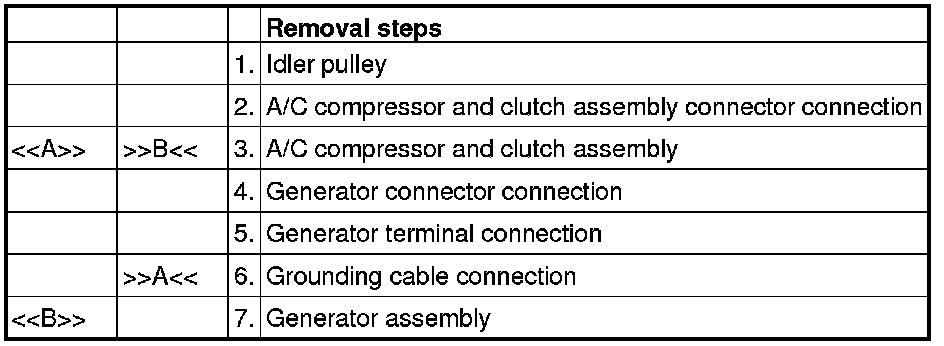

REMOVAL SERVICE POINTS

[[A]] A/C COMPRESSOR AND CLUTCH ASSEMBLY REMOVAL

1. With the hose installed, remove the A/C compressor and clutch assembly from the bracket.

2. Tie the removed A/C compressor and clutch assembly with a string at a position where it will not interfere with the removal and installation of the generator assembly.

[[B]] GENERATOR ASSEMBLY REMOVAL

Remove the generator assembly to the downside.

INSTALLATION SERVICE POINTS

]]A[[ GROUNDING CABLE INSTALLATION

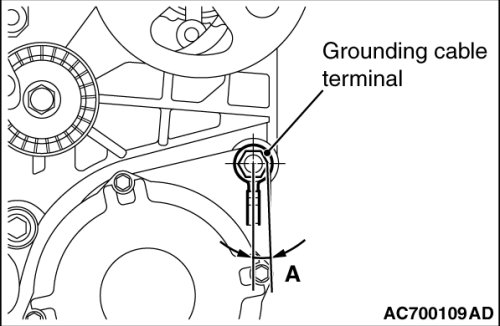

1. Install the grounding cable within the area marked with A in the illustration.
2. Tighten the generator assembly mounting bolt to the specified torque.
Tightening torque: 44± 10Nm (33± 7 ft-lb)

]]B[[ A/C COMPRESSOR AND CLUTCH ASSEMBLY INSTALLATION





Tighten A/C compressor and clutch assembly mounting bolts to the specified torque in the order of number shown in the illustration.
Tightening torque: 23± 6Nm (17± 4 ft-lb)
