Fluid Line/Hose: Service and Repair

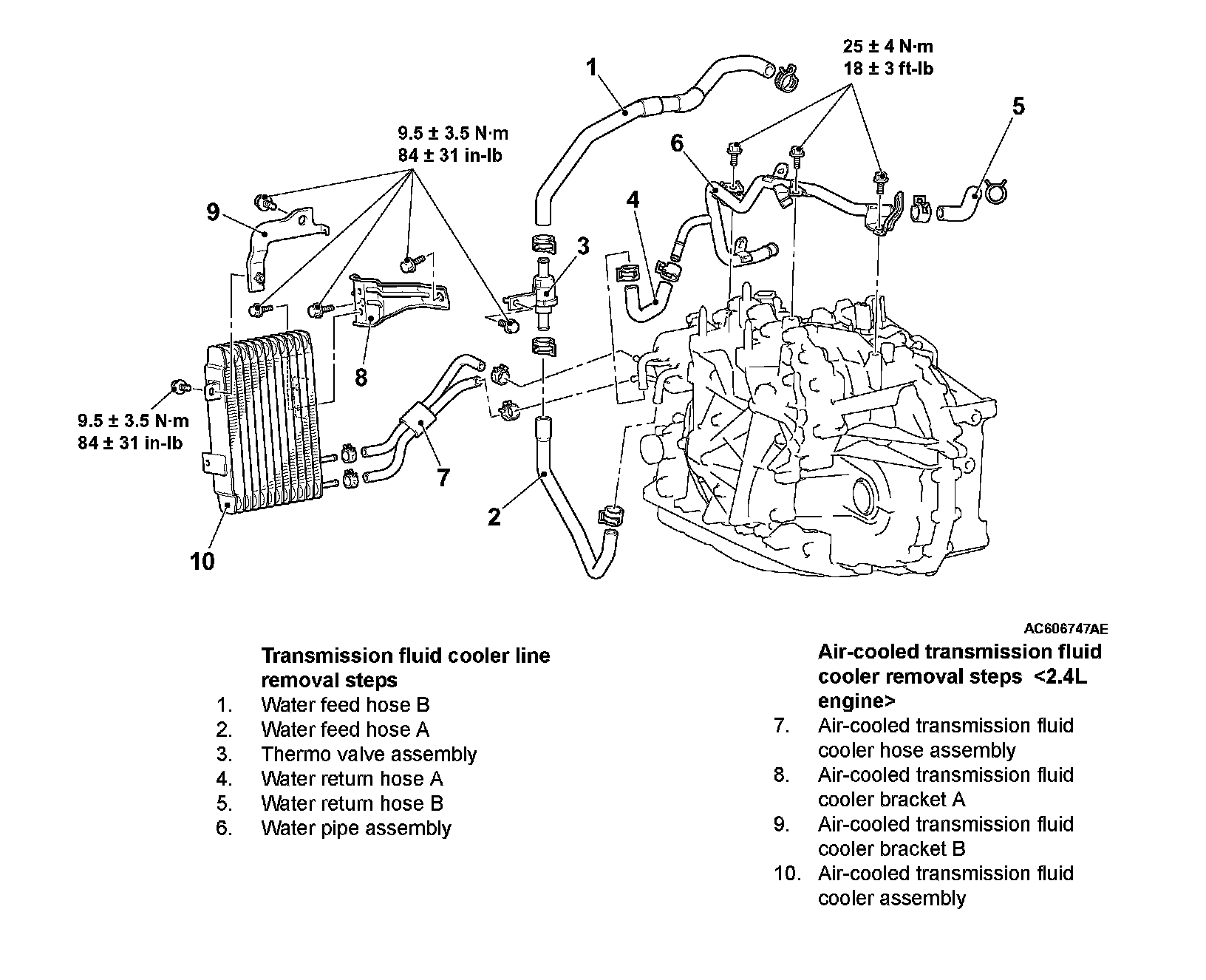

TRANSMISSION FLUID COOLER AND COOLER LINE

REMOVAL AND INSTALLATION
