Locations
>>
Connector Locations
>>

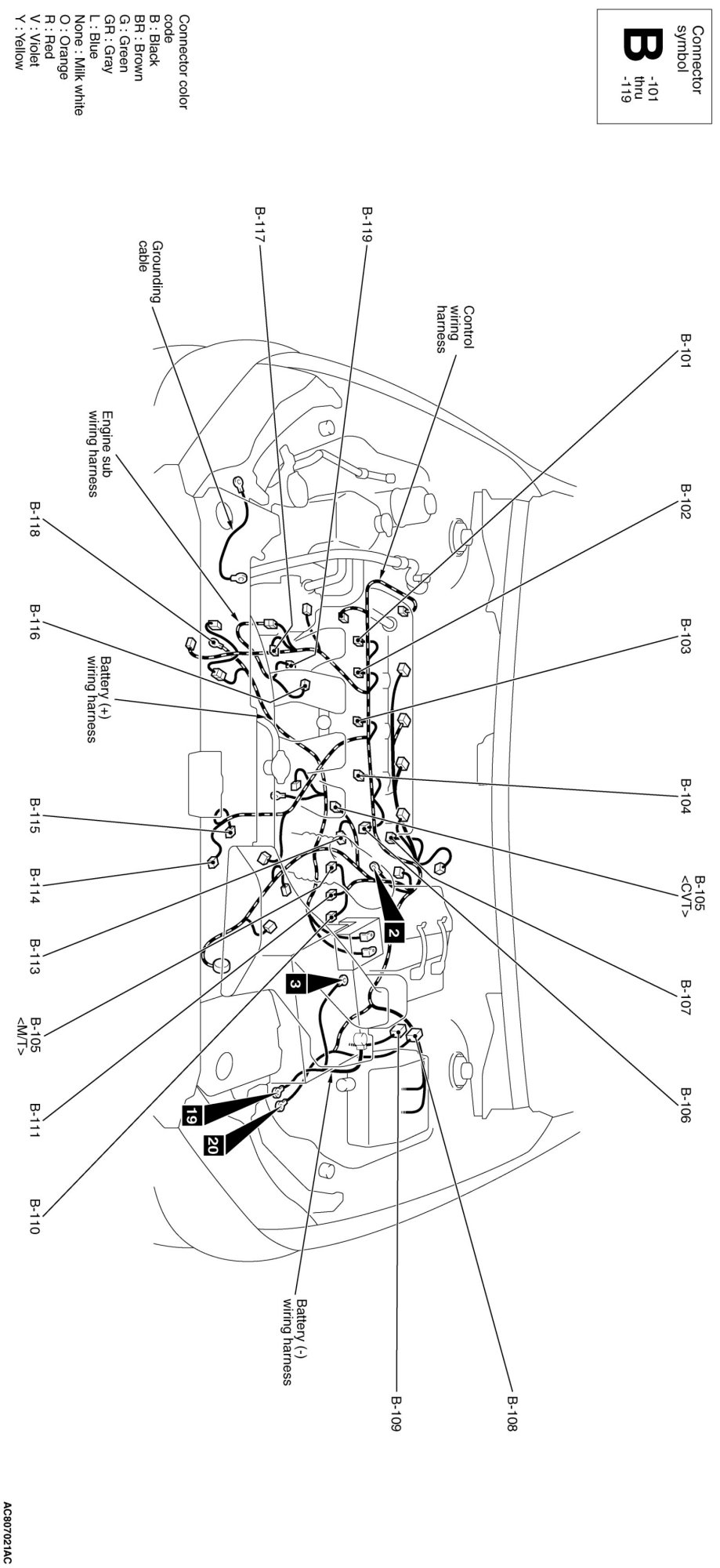

B Connectors - Engine and Transaxle (Transmission)
>>
B-101 to B-119
B-101 to B-119
ENGINE AND TRANSAXLE [NON-TURBO]
