Door Entry Function

GENERAL INFORMATION

DOOR ENTRY FUNCTION

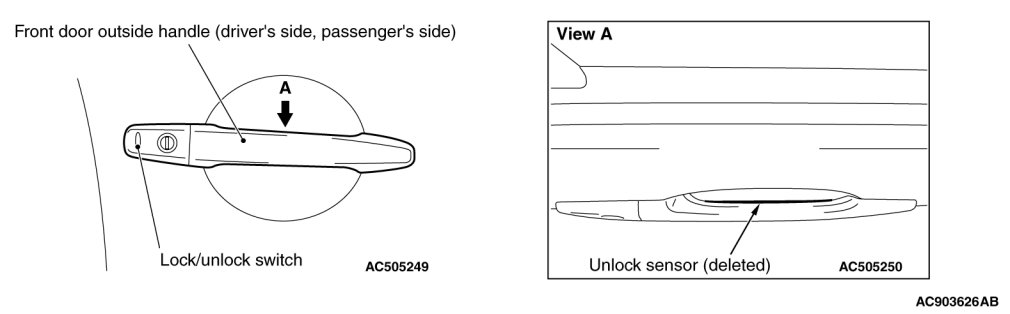

Due to the abolishment of the unlock sensor for the door outside handle (driver's/passenger's side), the lock switch has been changed to a lock and unlock switch. The unlock/lock control has been changed. The other service procedures are the same as before.

UNLOCKING OPERATION OF DOOR ENTRY FUNCTION

The keyless operation key and KOS-ECU communicate to certify the keyless operation key when the lock/unlock switch on the driver-side/front passenger-side door outside handle or the liftgate lock release handle is turned ON. When KOS-ECU certifies the registered keyless operation key on the outer side of the vehicle, it requests ETACS-ECU to unlock the doors and the liftgate.

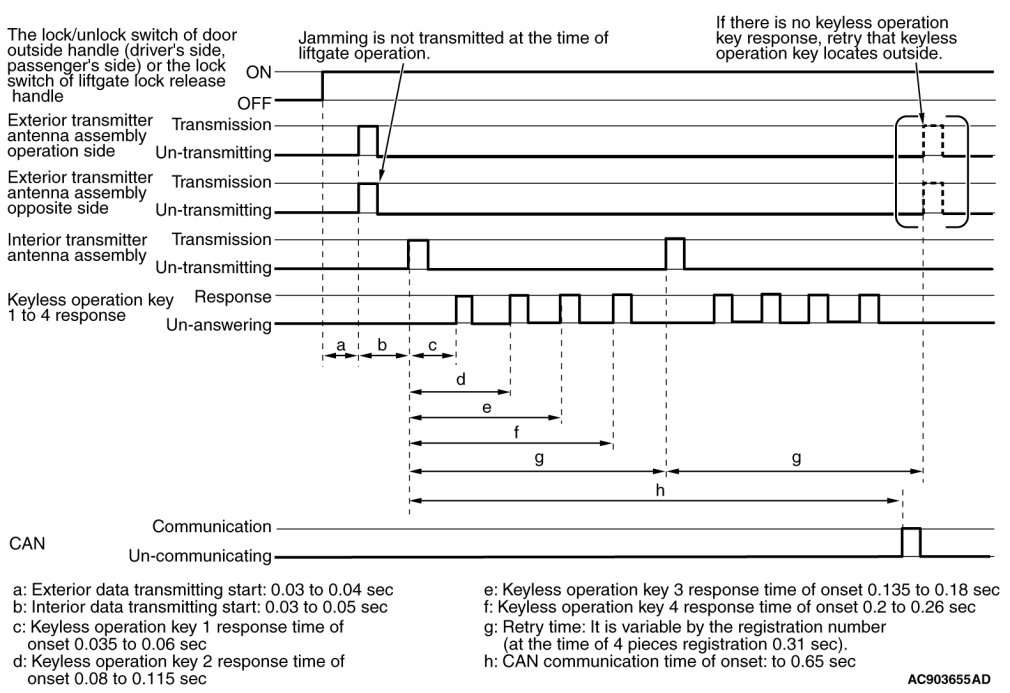

CONTROL OF UNLOCKING OPERATION






UNLOCKING OPERATION INHIBITION TIME (WHEN THE LIFTGATE IS OPERATED)

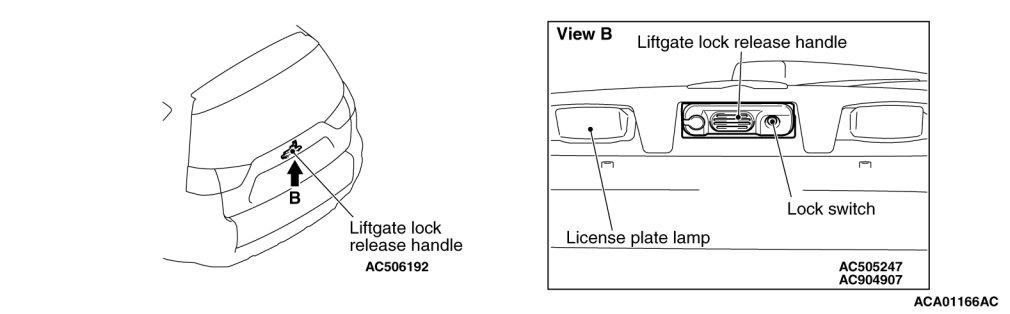

Considering that the customer operates the lock switch of liftgate lock release handle to make sure the doors are locked, the unlocking operation is prohibited for 3 seconds after the locking operation is performed by the lock switch of liftgate lock release handle.

LOCKING OPERATION OF DOOR ENTRY FUNCTION

The keyless operation key and KOS-ECU communicate to certify the keyless operation key when the lock/unlock switch on the driver-side/front passenger-side door outside handle or the liftgate lock release handle (lock switch) is turned ON. When KOS-ECU certifies the registered keyless operation key only on the outer side of the vehicle, it requests ETACS-ECU to lock all the doors and the liftgate.
Dead lock function locks all the doors and liftgate, when the lock/unlock switch of door outside handle (driver's/passenger's side) is pressed once.
NOTE:
When a keyless operation key is located inside the vehicle, KOS-ECU does not output a request for locking all the doors.

CONTROL OF LOCKING OPERATION
