Service Specifications

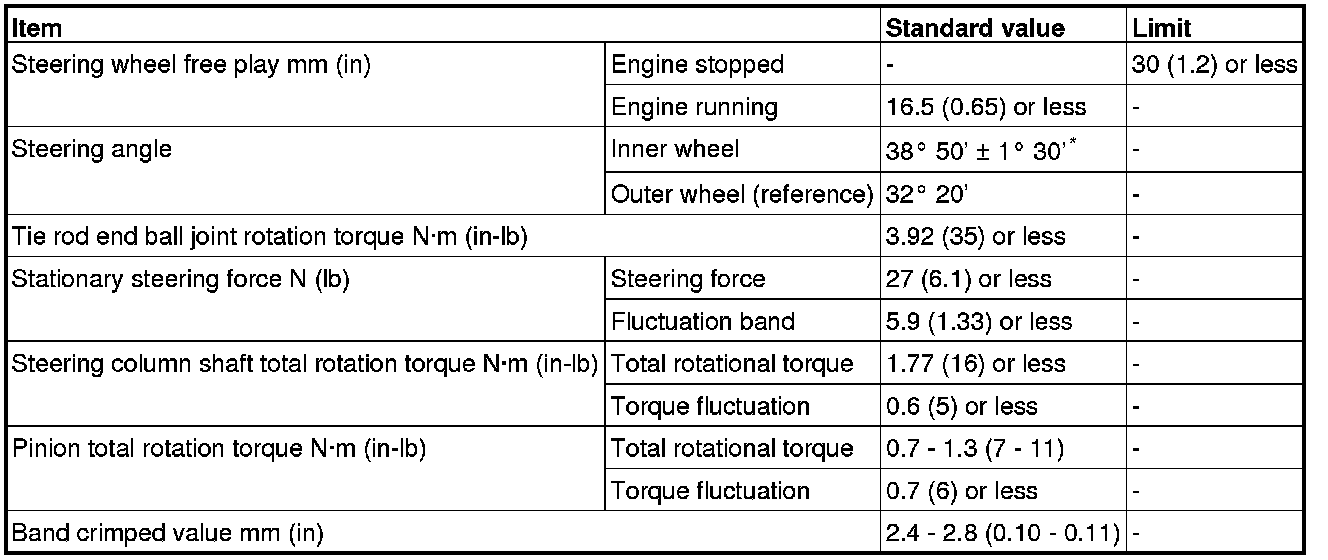

SERVICE SPECIFICATIONS





NOTE:
*: Difference between right and left wheels must be 2°00' or less
