Galant L4-2.4L (4G69)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Transmission Temperature Sensor/Switch
>>
Locations
>>
A/T Control Components
A/T Control Components

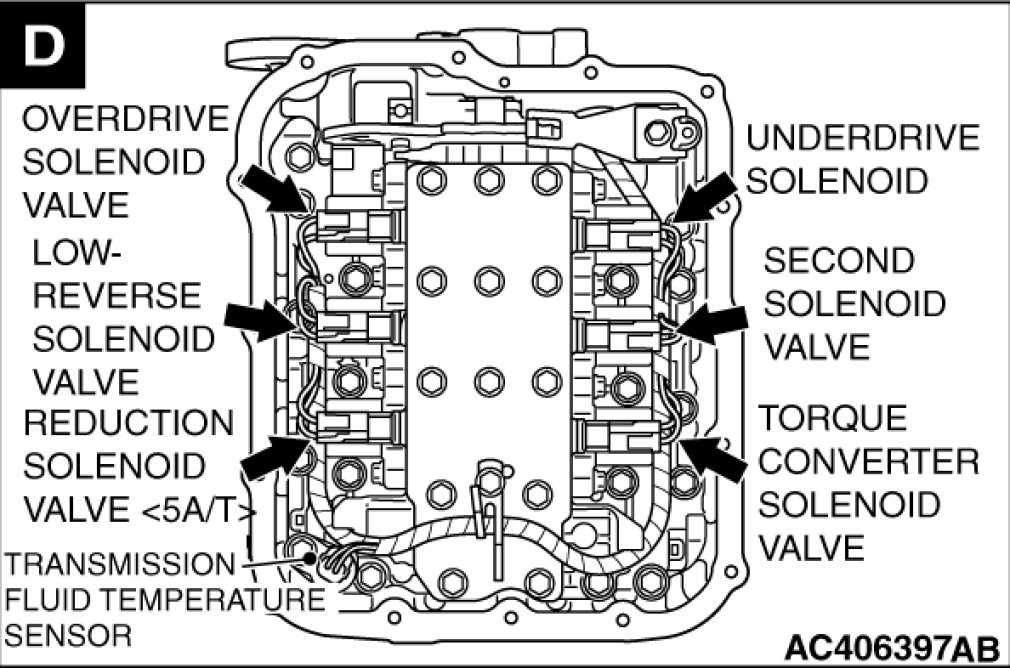

A/T CONTROL COMPONENT LAYOUT
