Grounding




GROUNDING





NOTE:

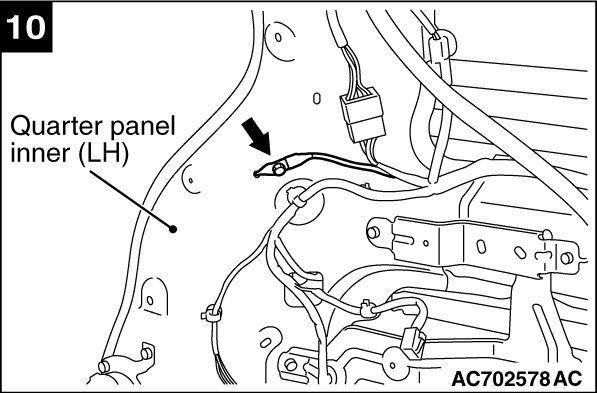

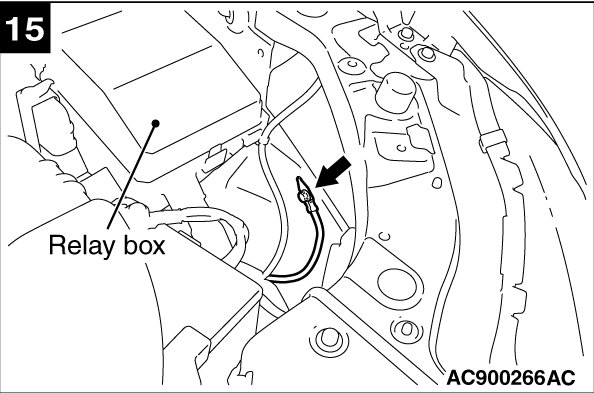

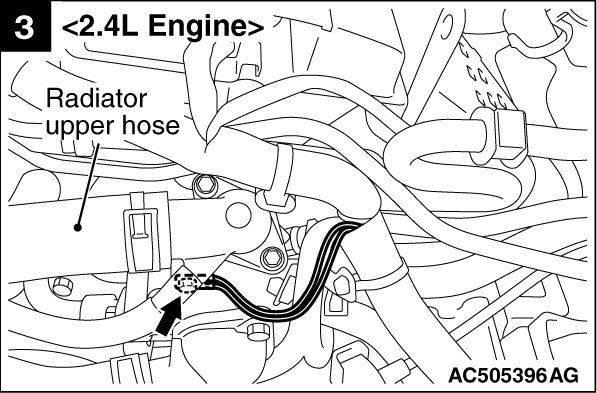

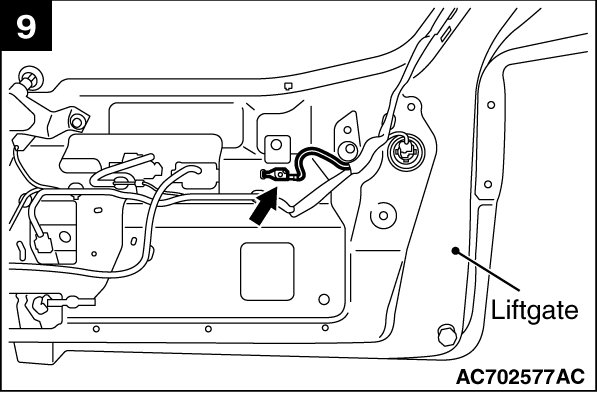

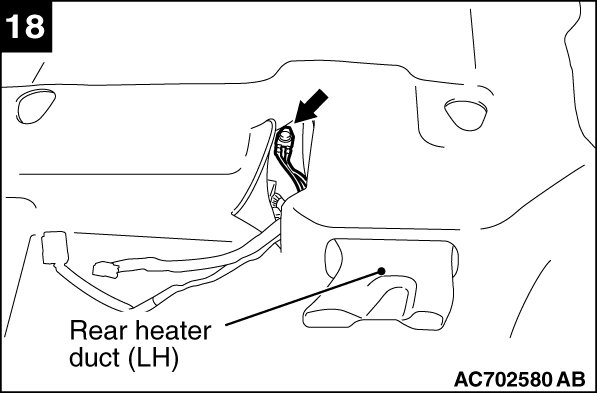

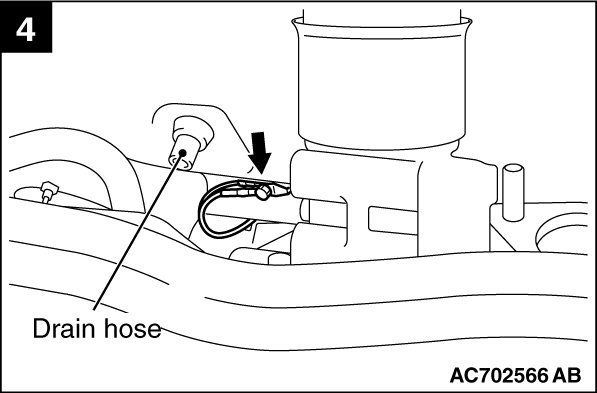

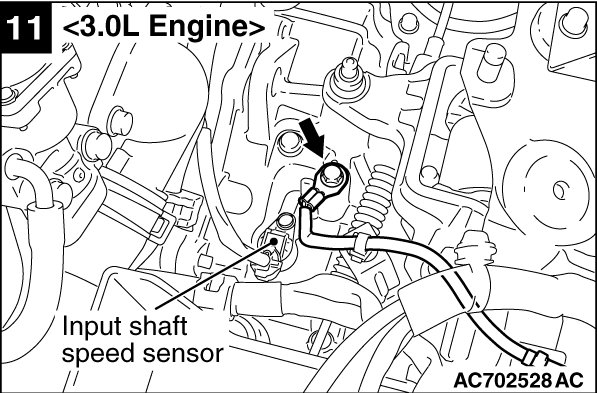

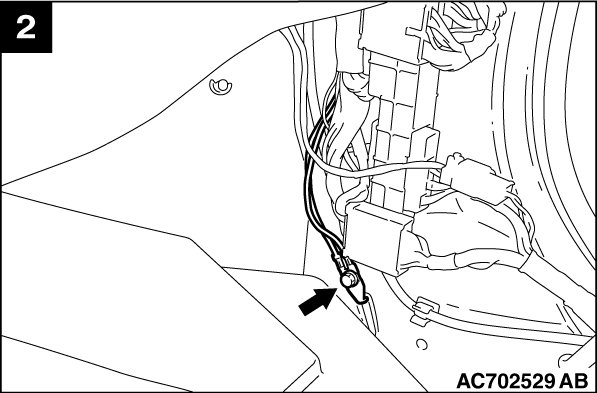

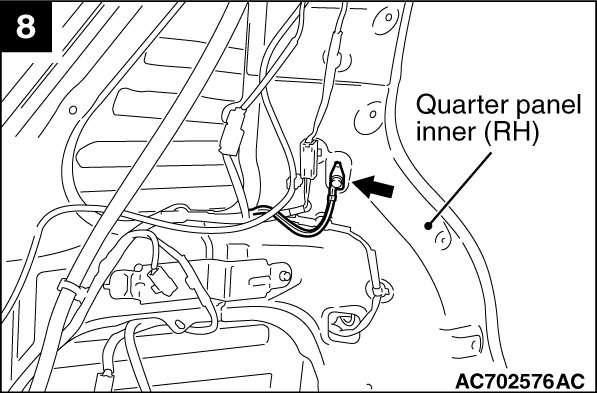

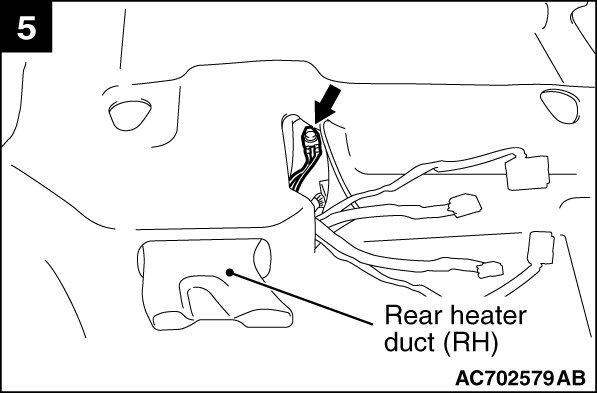

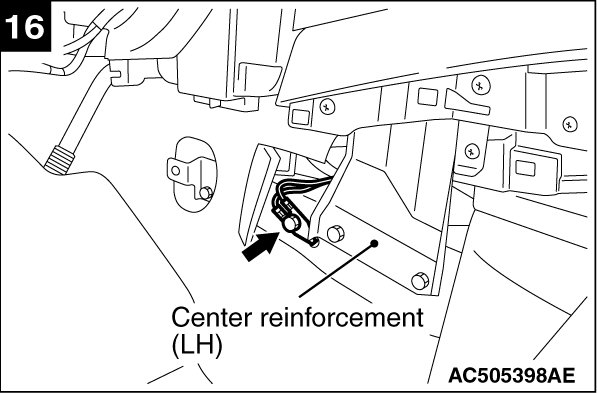

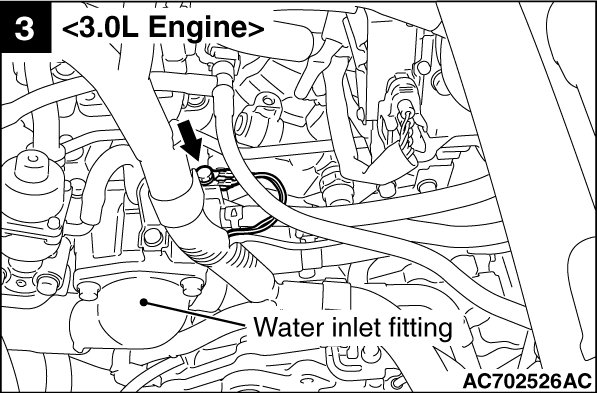

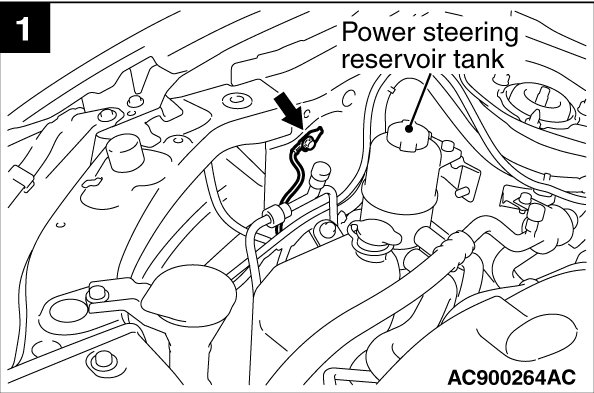

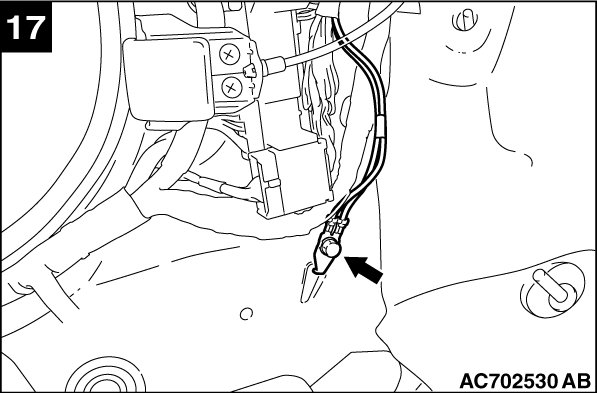

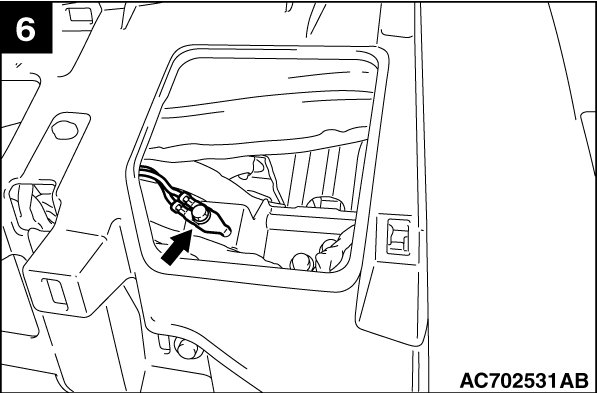

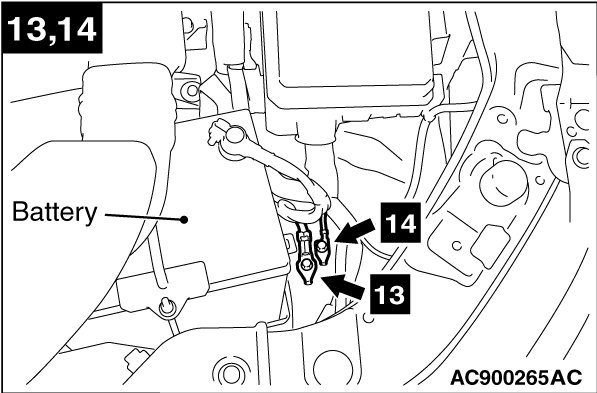

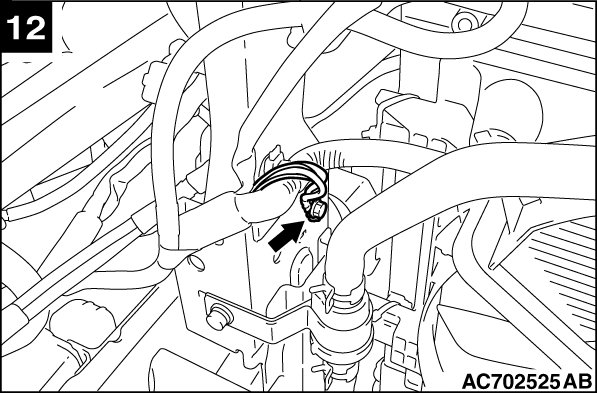

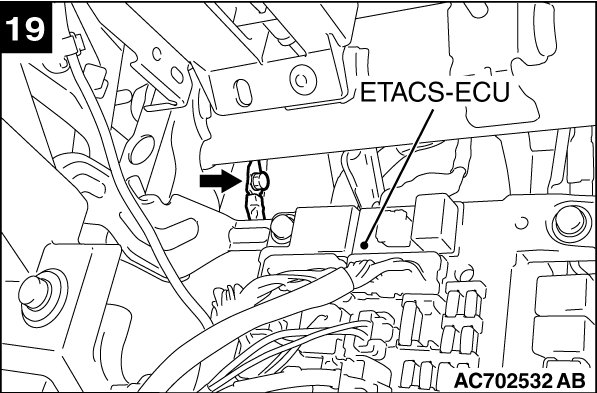

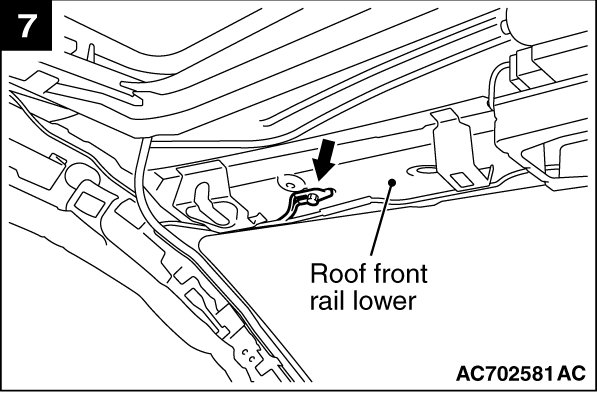

1 to 19 numbers correspond to the body ground point numbers in CIRCUIT DIAGRAMS.
