Rear Wiper and Washer

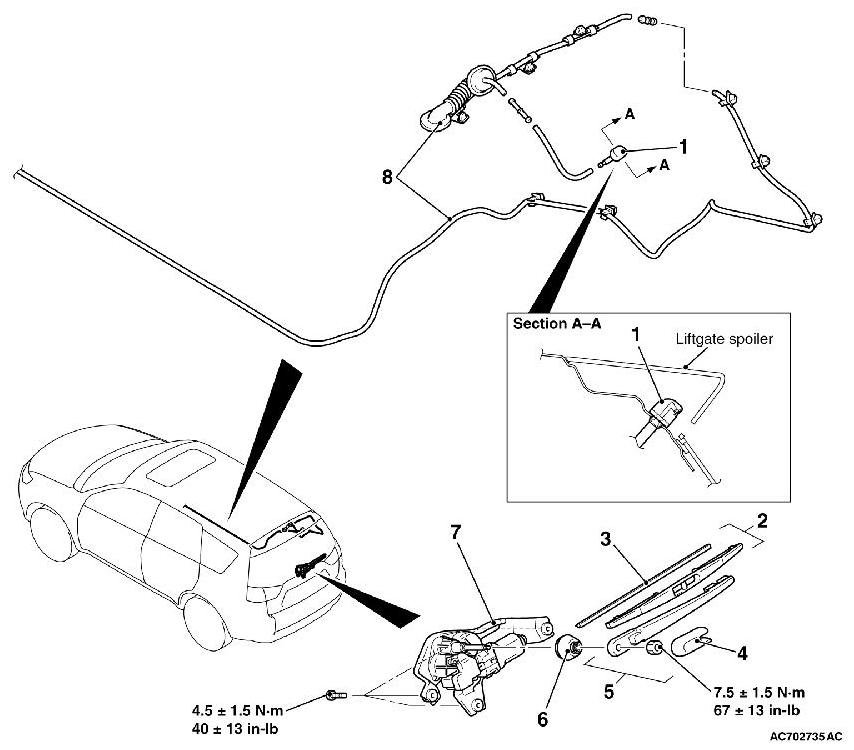

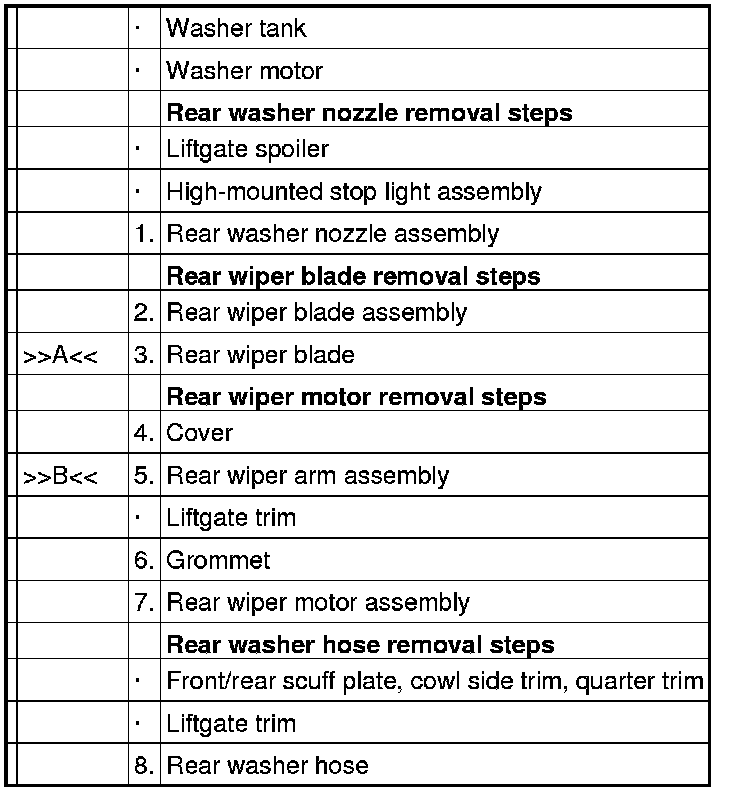

REMOVAL AND INSTALLATION









NOTE:
For removal and installation of the wiper and washer switch, refer to Column Switch Service and Repair.

INSTALLATION SERVICE POINTS

]]A[[ REAR WIPER BLADE INSTALLATION





CAUTION:

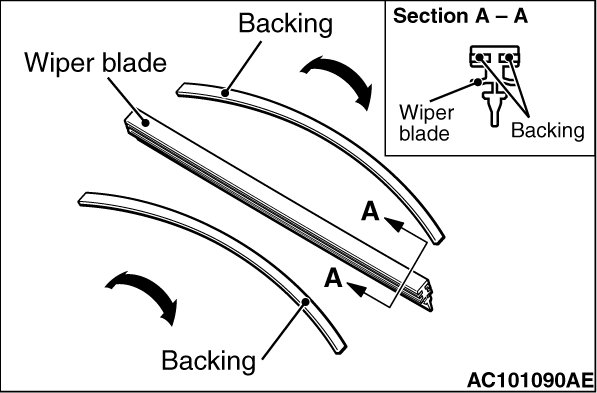

Use a curved backing like that shown for the backing of a wiper blade to ensure sustained wiper wiping performance.

]]B[[ REAR WIPER ARM AND BLADE ASSEMBLY INSTALLATION





Install the rear wiper arm and blade assembly so that it stops at the specified position.

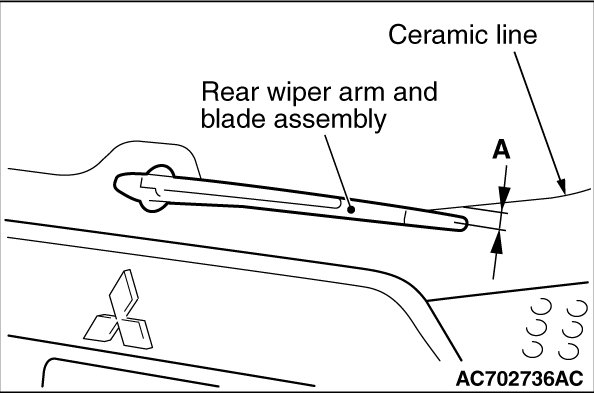

(A): 0 to 20 mm (0 to 0.79 in) from the ceramic line
