Disassembly and Reassembly [7 Persons Seat]

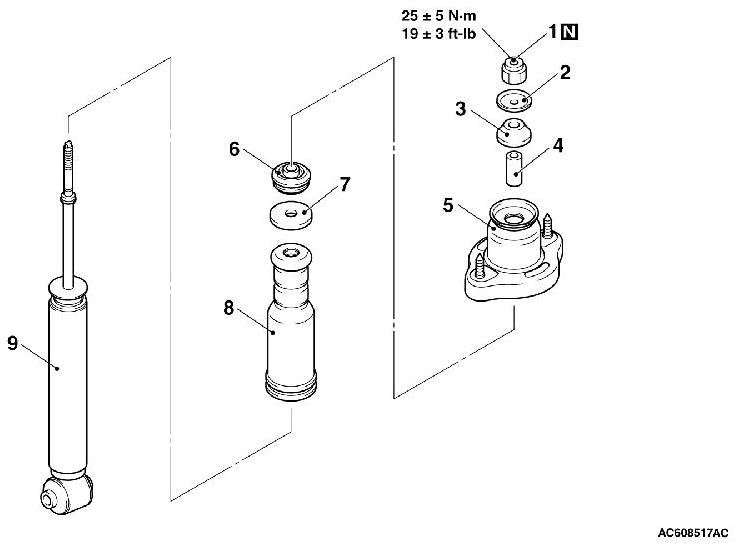

DISASSEMBLY AND ASSEMBLY [2.4L ENGINE: 7 PERSONS SEAT, 3.0L ENGINE]









DISASSEMBLY SERVICE POINT

[[A]] SELF-LOCKING NUT REMOVAL





Counter the piston rod of the shock absorber as shown in the figure to remove the self-locking nut.

ASSEMBLY SERVICE POINT

]]A[[ SELF-LOCKING NUT INSTALLATION

CAUTION:
The locking nut for the piston rod inside the shock absorber may be loose. Do not use an impact wrench to tighten the self-locking nut.





Counter the piston rod of the shock absorber as shown in the figure, and tighten the self-locking nut to the specified torque.
Tightening torque: 25 ± 5 Nm (19 ± 3 ft-lb)
