Side Cover Disassembly and Assembly

DISASSEMBLY AND ASSEMBLY









- MB992196: Spring compressor

DISASSEMBLY





1. Remove the seal rings from the side cover.





2.
CAUTION:
Ensure that the special tool MB992196 is correctly set, directly above the return springs of the spring retainer assembly.

Using the special tool MB992196, remove the snap ring while pushing the spring retainer assembly.





3.
CAUTION:
Do not remove the return springs from the spring retainer assembly.

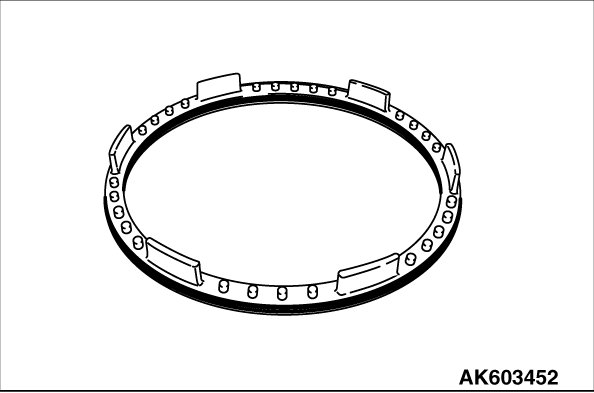

Remove the spring retainer assembly from the 2-6 brake piston.





4.
CAUTION:
Do not feed air abruptly. Otherwise, the 2-6 brake piston may become stuck in the side cover.

Feed air through the oil hole as indicated in the illustration to remove the 2-6 brake piston from the side cover.





5. Remove the D-rings from the 2-6 reverse brake piston.

ASSEMBLY





1.
CAUTION:

- Never reuse the D-rings.

- Apply transmission fluid to the D-rings before installation.

Install D-rings onto the 2-6 brake piston.





2.
CAUTION:
Apply transmission fluid to the 2-6 brake piston before installation.

Install the 2-6 brake piston onto the side cover.





3. Install the spring retainer assembly onto the 2-6 brake piston.





4.
CAUTION:
Ensure that the special tool MB992196 is correctly set, directly above the return springs of the spring retainer assembly.

Using the special tool MB992196, install the snap ring while pushing the spring retainer assembly.





5.
CAUTION:

- Never reuse the seal rings.

- Apply vaseline to the seal rings before installation.

Install seal rings onto the side cover.
