Transfer Assembly Removal and Installation [Vehicles without S-AWC]

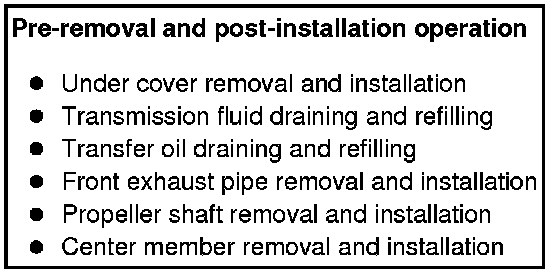

REMOVAL AND INSTALLATION [Vehicles without S-AWC]













REMOVAL SERVICE POINT

]]A[[ TRANSFER ASSEMBLY REMOVAL

Move the engine and transaxle assembly toward the front of the vehicle to make a gap between the engine/transaxle assembly and the crossmember. Pull out the transfer assembly through this gap.
