Electronically-Controlled System

GENERAL INFORMATION

ELECTRONICALLY-CONTROLLED SYSTEM

INVECS-III CONTROL

INVECS-III has been newly developed based on INVECS-II utilizing continuous variable characteristics of CVT.





To select the pulley ratio which can provide the driving force corresponding to the driver's intention and vehicle conditions, TCM selects the optimal pulley ratio and determines the shift strategy to obtain it by detecting the vehicle driving conditions such as the vehicle speed, accelerator angle. Then, it outputs the command to the stepper motor, controls in/out flow of the line pressure to/from the primary pulley, positions the movable pulley of the primary pulley, and controls the gear ratio.

ENGINE BRAKE FEATURE ON THE DESCENDING SLOPE

Pulley ratio is controlled to obtain the engine brake suitable for the driver's feelings.

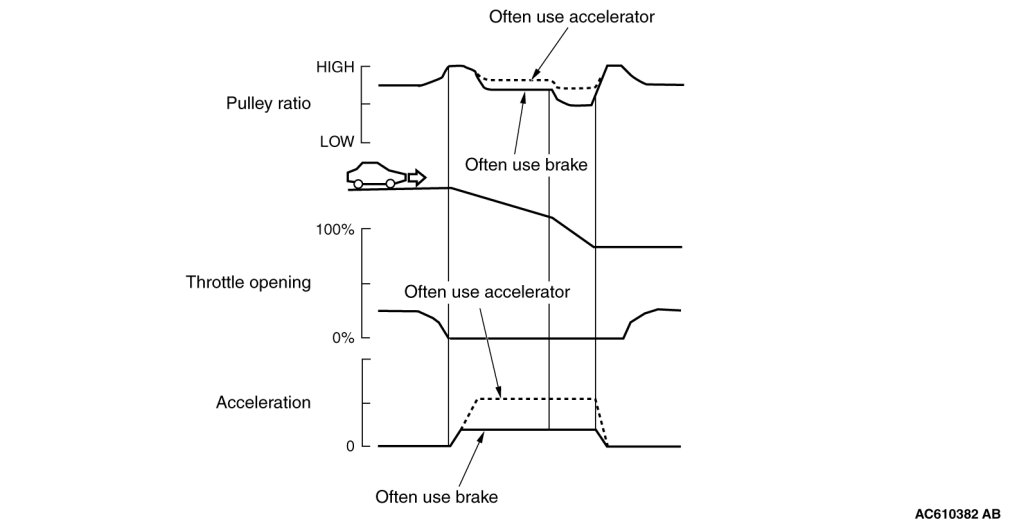

Engine brake learning feature on the descending slope





Learning compensation is made to meet the tastes of a driver by judging the amount of the engine brake from the application of the accelerator or the brake.

DRIVING FEATURE ON THE ASCENDING SLOPE





If the foot leaves the accelerator pedal during driving on the ascending slope (called lift foot), driving capability is secured by preventing excessive upshifting.

Learning feature corresponding to tastes and habits of drivers





Ratio patterns are continuously switched according to the driving method of a driver.

SYSTEM CONSTRUCTION DIAGRAM
