Steering Column
>>
Steering Column Exploded View Less Tilt Column
Steering Column Exploded View Less Tilt Column

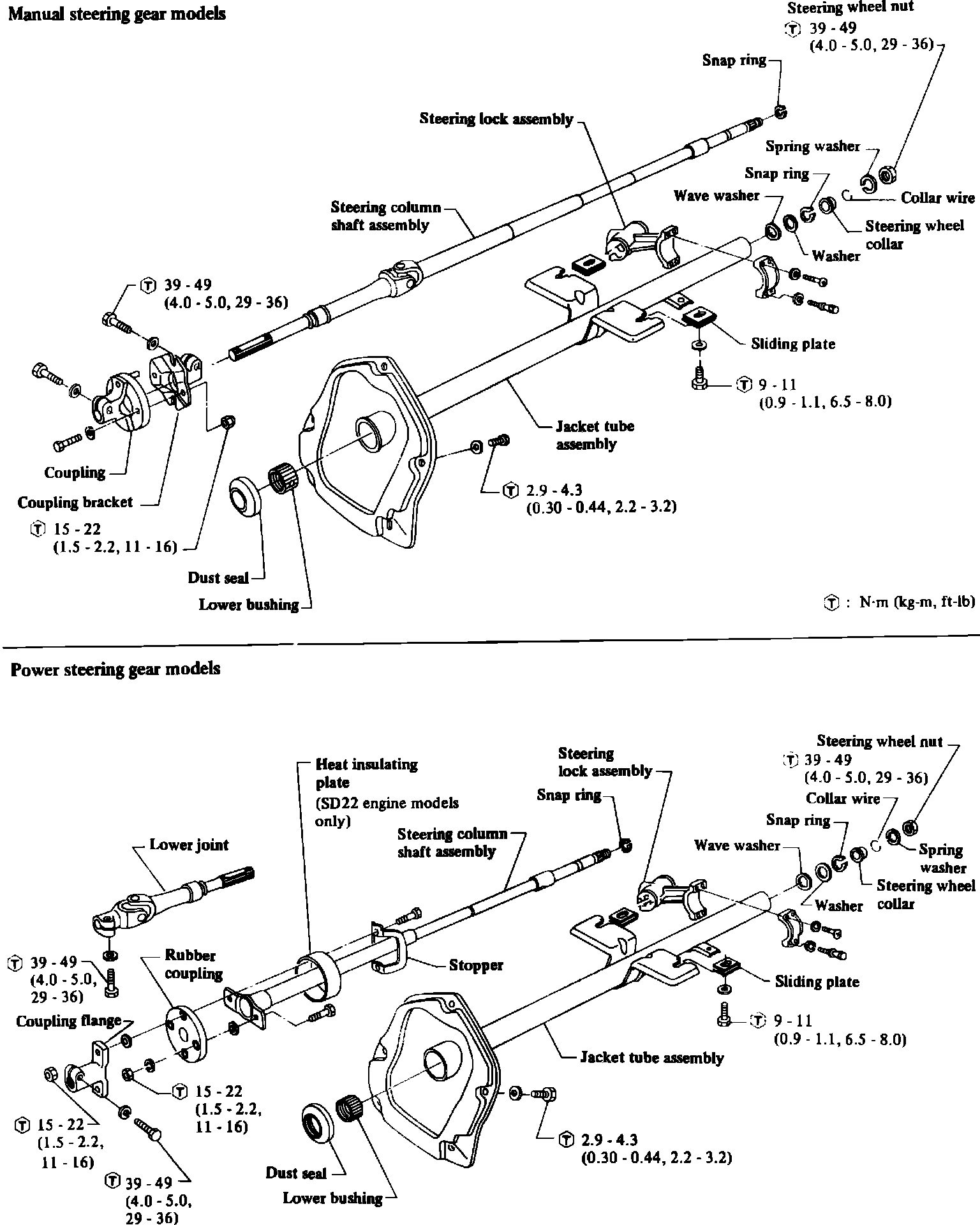

Fig. 6 Exploded view of steering column. 1982-86 Pickup less tilt column:
