Distributor Disassembly

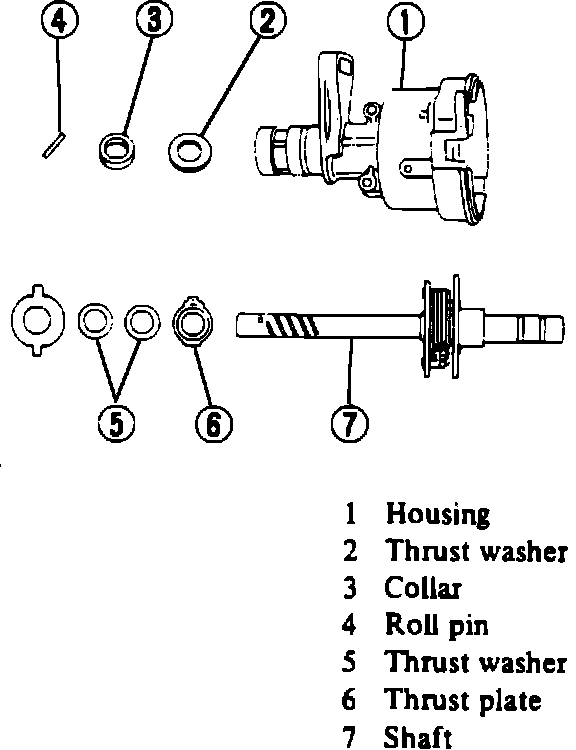

Exploded View:
1. Remove distributor from vehicle.

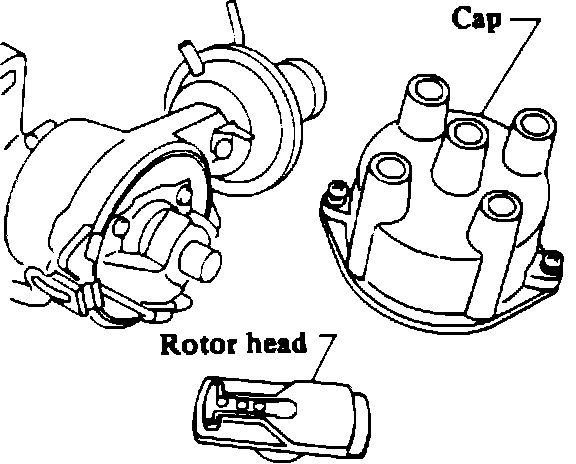

Distributor Cap And Rotor:
2. Remove distributor cap and rotor.
Vacuum Advance Removal And Installation:

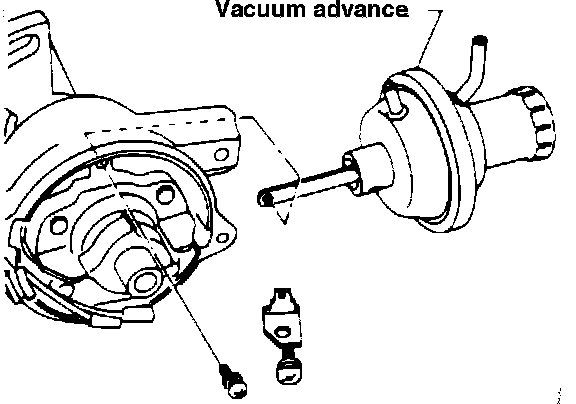

3. Remove vacuum advance unit from distributor.
Harness Removal And Installation:

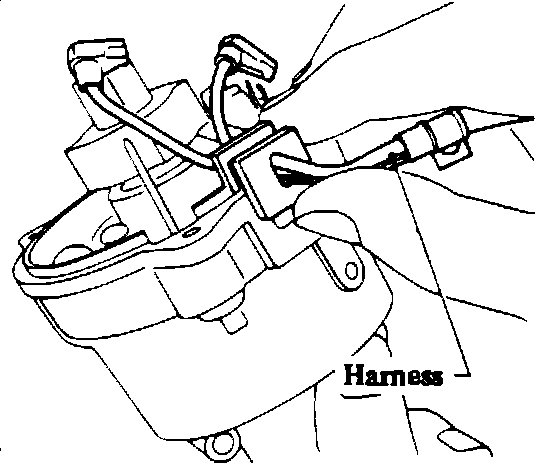

4. Remove wiring harness from distributor housing.

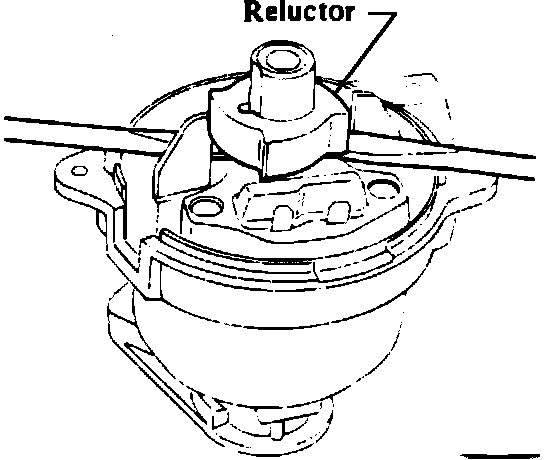

Distributor Reluctor Removal:
5. Using a flat blade screw driver, remove reluctor from distributor shaft. Remove roll pin from reluctor.
CAUTION: Do not distort or damage reluctor during removal.

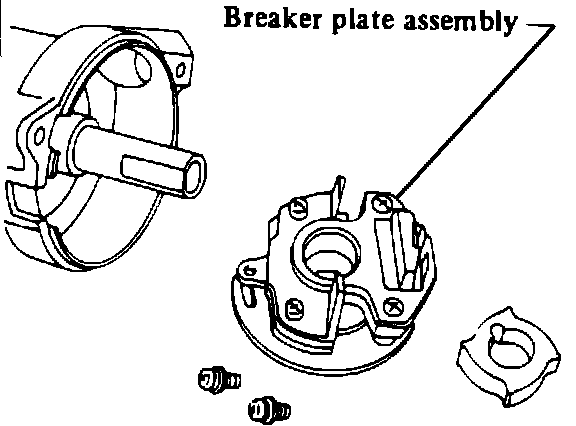

Breaker Plate Assembly:
6. Remove breaker plate assembly.
Breaker Plate, Control Unit Assembly:

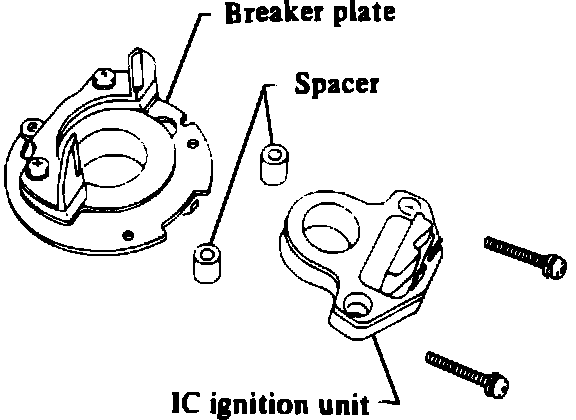

7. Remove IC ignition module and spacers from breaker plate.

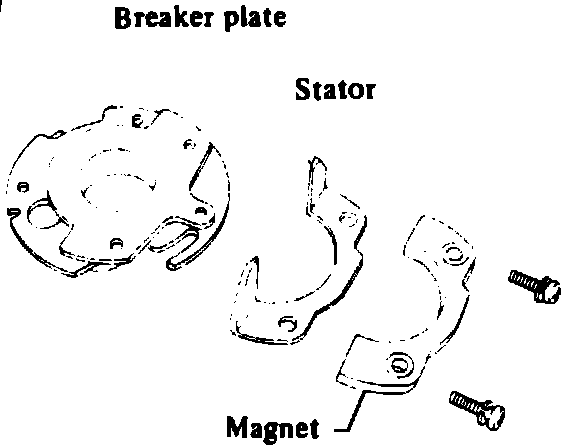

Breaker Plate, Stator And Magnet Disassembly:
8. Remove magnet and stator from breaker plate.

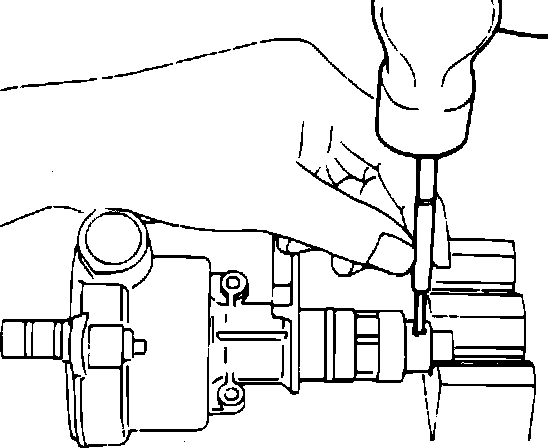

Roll Pin Removal:
9. Using a properly sized punch, remove roll pin from distributor housing. Remove collar.
Distributor Shaft Assembly:
10. Remove distributor shaft assembly from housing.

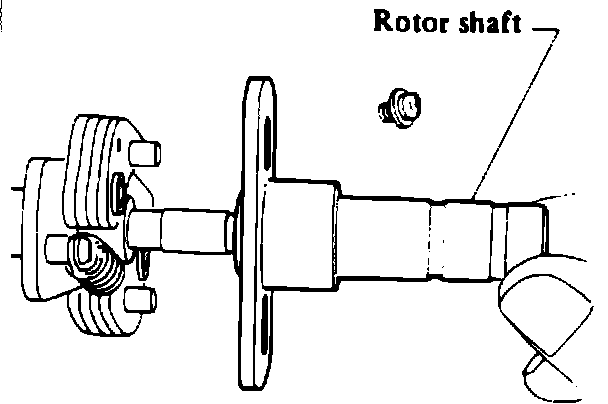

Rotor Shaft Removal:
11. Remove packing from top of rotor shaft. Remove rotor shaft retaining screw. Remove rotor shaft.

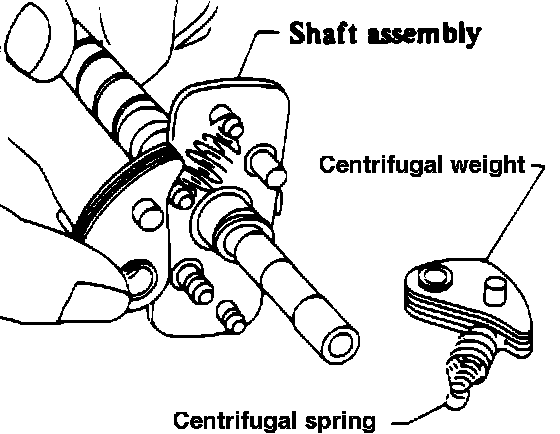

Centrifugal Weight Assembly:
12. Remove centrifugal weights and springs from shaft assembly.
