Assembly

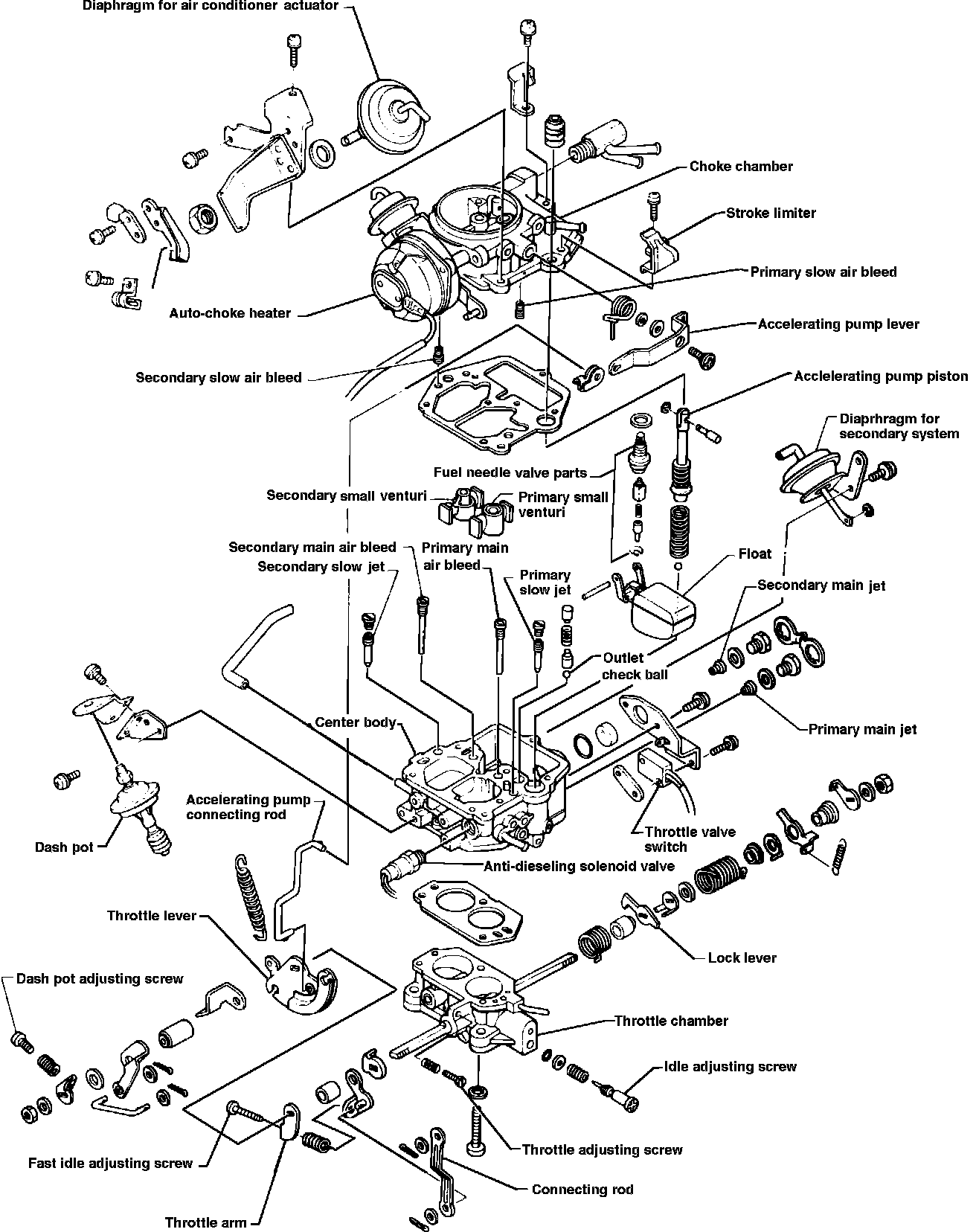

Fig. 8 DCZ-328 carburetor exploded view.:

Reverse disassembly procedure to complete assembly, ensuring that all calibrated components are installed in proper positions, Fig. 8. Use new gaskets, seals and sealing washers, and perform adjustments, as outlined, during assembly. Prior to installation, ensure that all linkages, levers and return springs are properly installed and adjusted. Install idle mixture screw in position recorded during disassembly, adjust mixture as outlined in appropriate tune up section, then install new concealment plug.
