Operation CHARM
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
1984
>>
Sentra L4-1681cc DSL SOHC (CD17)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Idle Up Control Valve
>>
Testing and Inspection
Idle Up Control Valve: Testing and Inspection

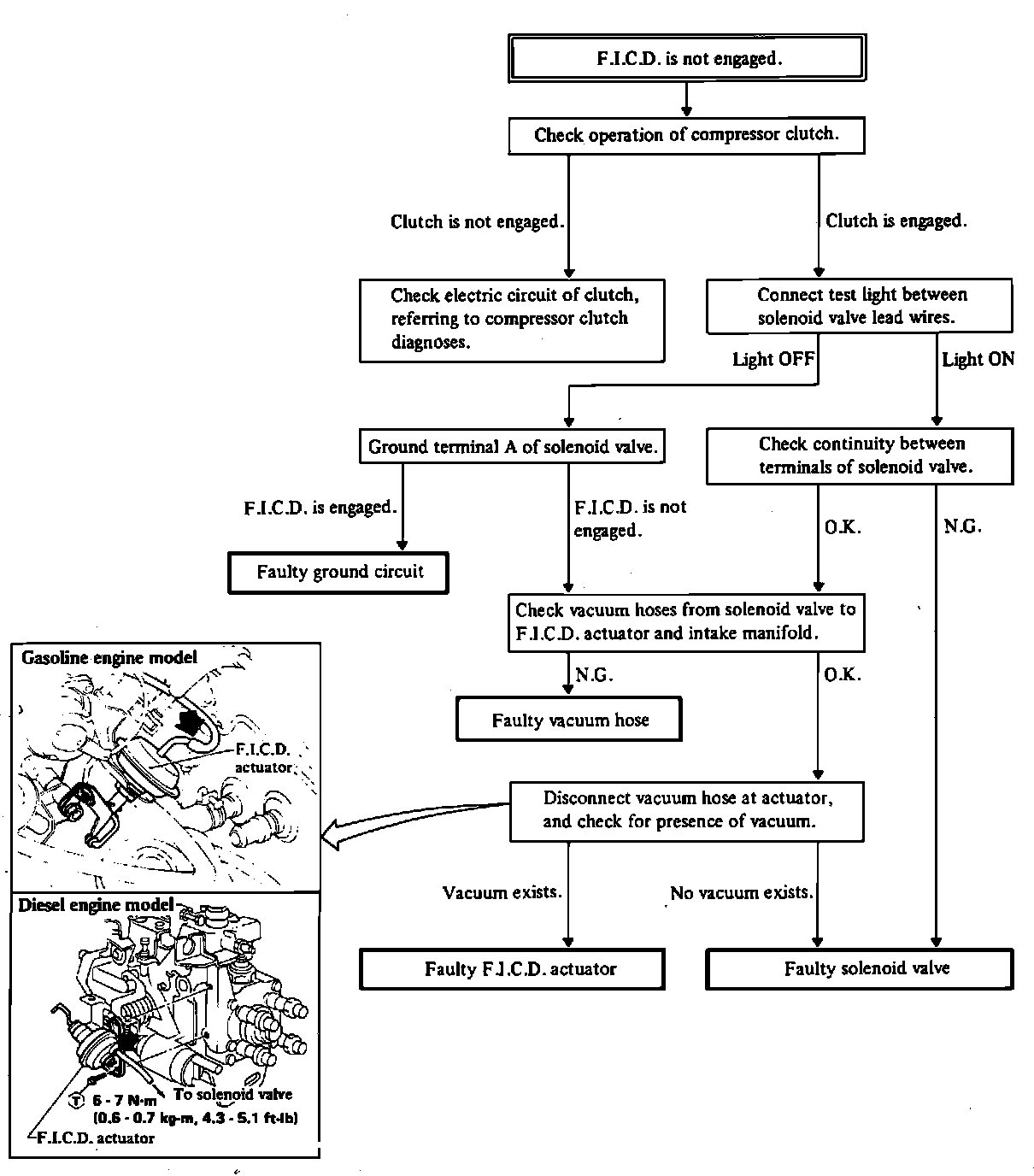

Fig. 40 Manual Heater & A/C diagnosis, Fast Idle Control Device (F.I.C.D.).:
