Clutch Pedal Assembly: Adjustments

Fig. 5 Clutch pedal height, withdrawal lever play & freeplay & specifications. Pulsar, Sentra & 1984-86 Stanza:

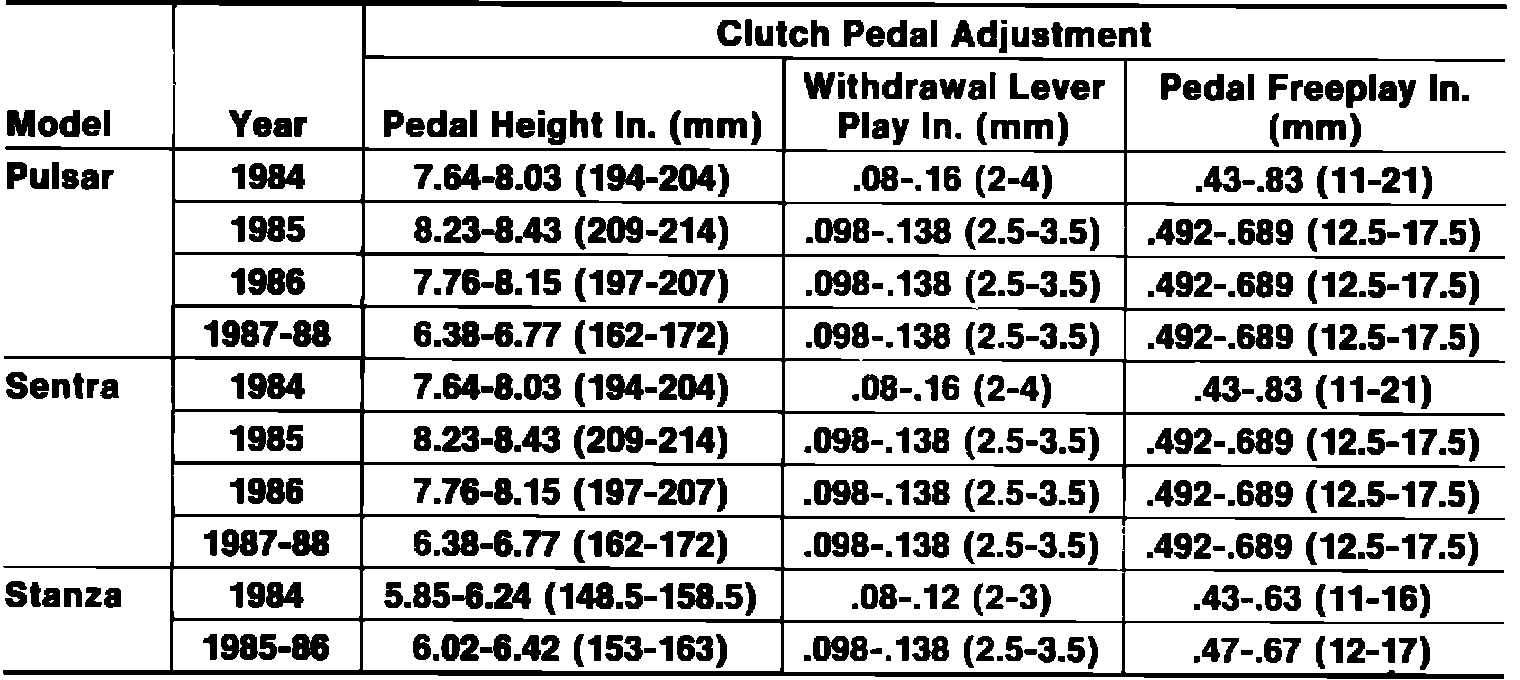

SPECIFICATION TABLE

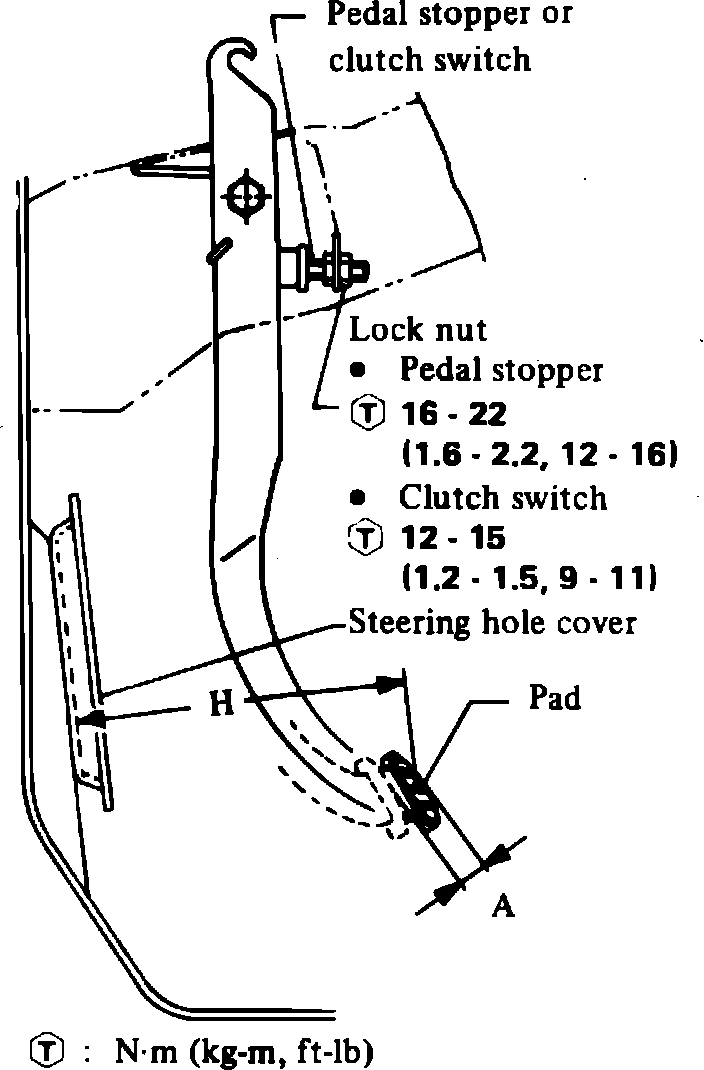

Fig. 3 Clutch pedal free travel & height adjustment. 1985-86 Pulsar & Sentra:

1. Adjust clutch pedal height so that dimension H, Fig. 3, is within specifications.

WITHDRAWAL LEVER ADJUSTMENT:

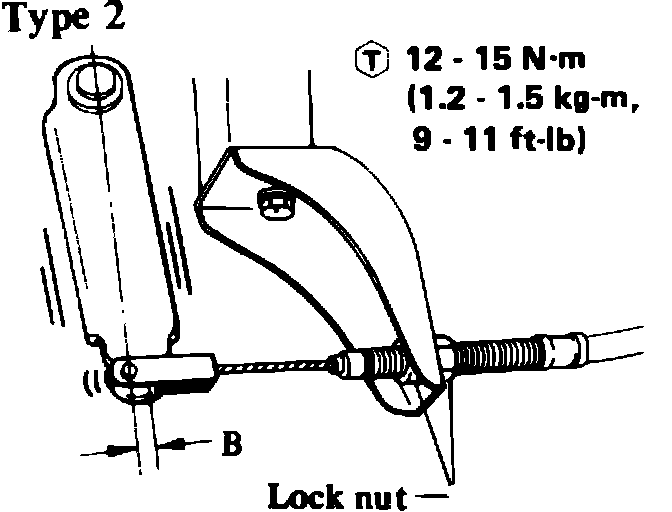

Fig. 7 Withdrawal lever adjustment. Pulsar & Sentra Type 2:

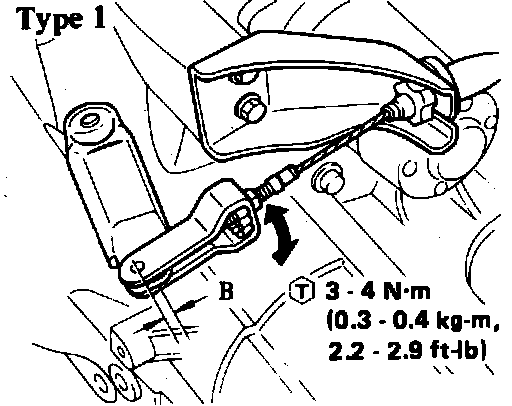

2. Adjust withdrawal lever play, dimension B, Figs. 6 & 7, with the adjuster or locknuts, to specifications.




3. Measure clutch pedal freeplay as shown in Fig. 3, dimension A. Freeplay should be as shown in specification table.
4. After the above adjustments have been completed, cycle clutch pedal several times to ensure that clutch linkage operates smoothly without binding.
