Specifications
>>
Mechanical Specifications
>>
Distributor, Ignition
>>
Distributor Advance Unit
Distributor Advance Unit

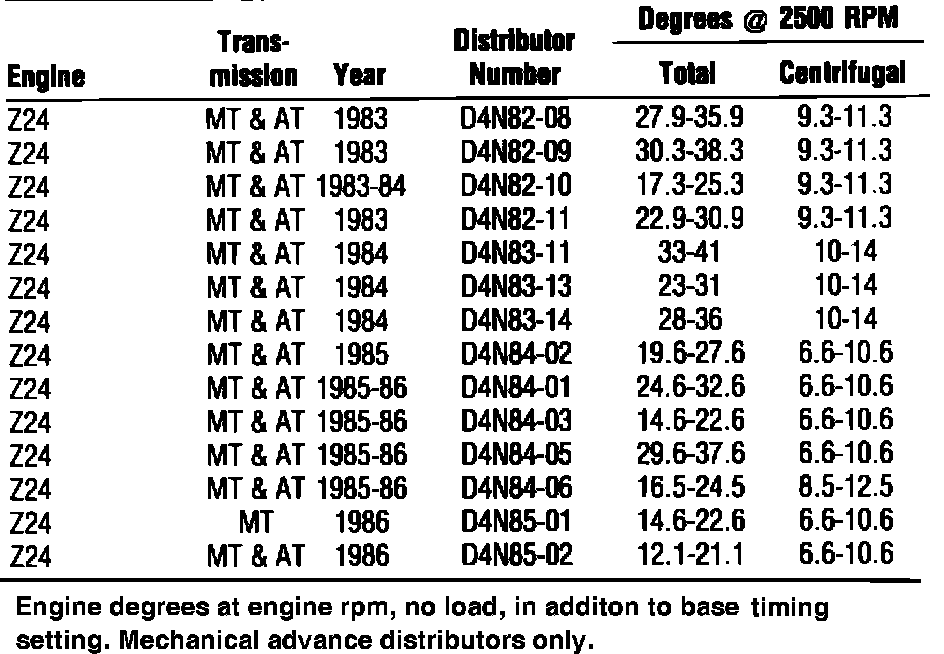

Fig. 5 Distributor Timing Advance Specifications:
