Test D - Excessive Secondary Voltage Difference (Some Cyls)

Test D:

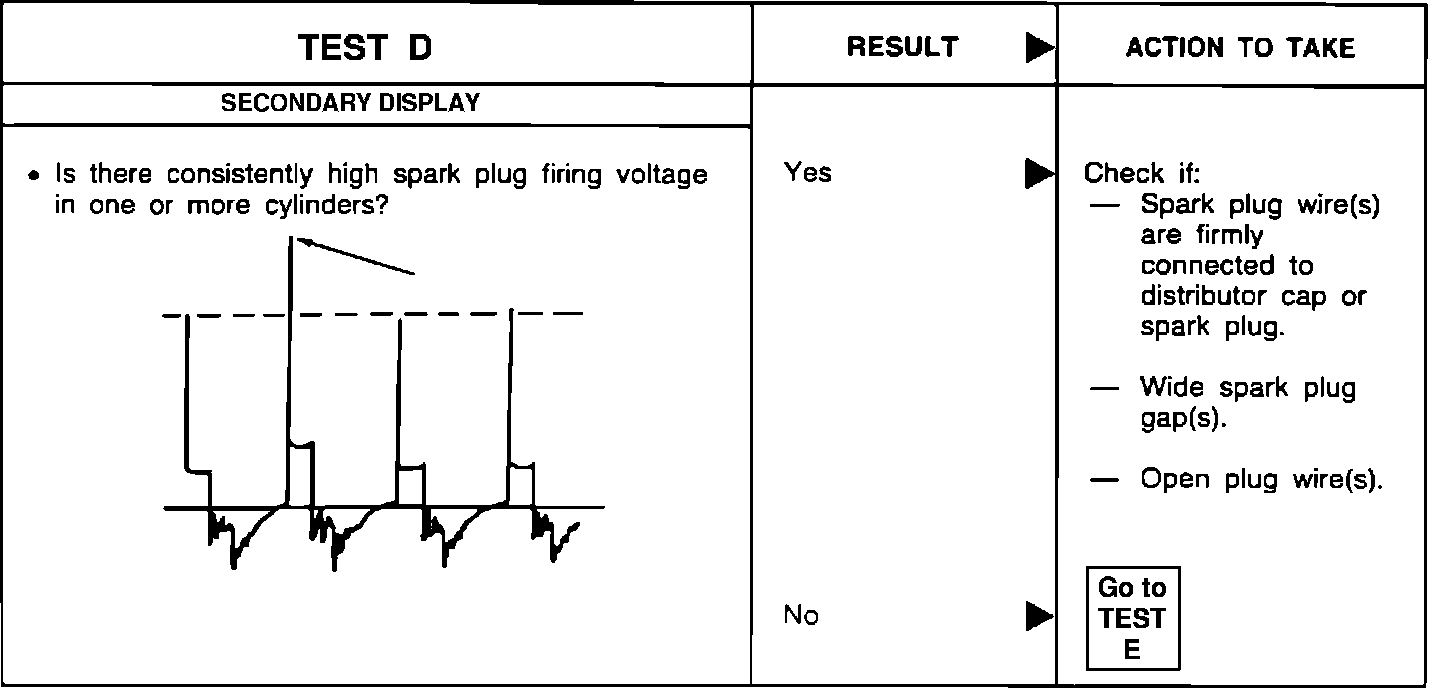

1. If the the secondary pattern shows one or more cylinders with consistently high voltage, check the areas indicated on the chart.
2. If the pattern is not as indicated above, proceed to TEST E.
