Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

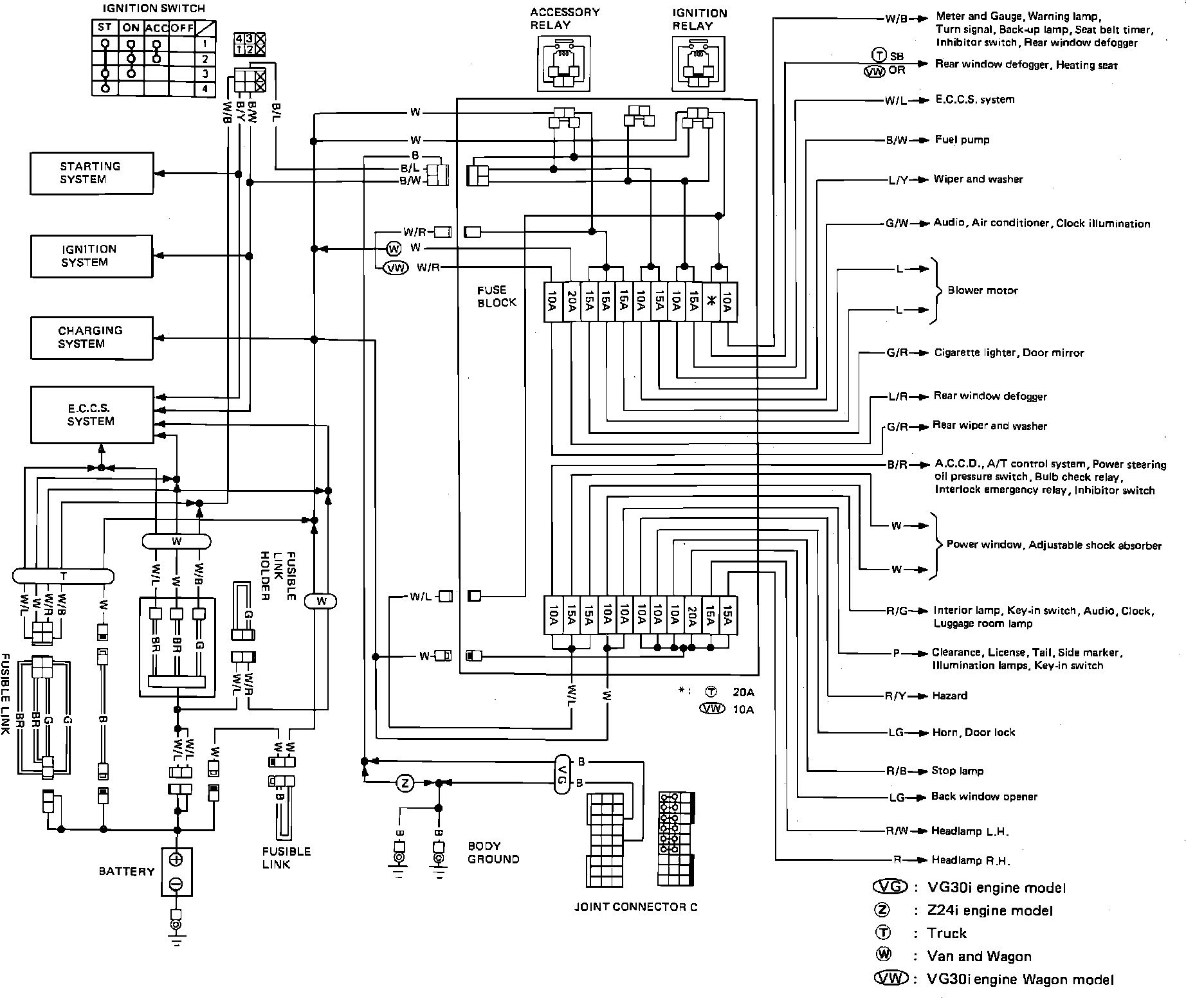

Fig. 274 Fuse Panel & Power Distribution. W/Gasoline Engine:
