D21 Hardbody 4WD L4-2389cc 2.4L SOHC (Z24i)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Component Tests
>>
Fuel Pump Control
Fuel Pump Control

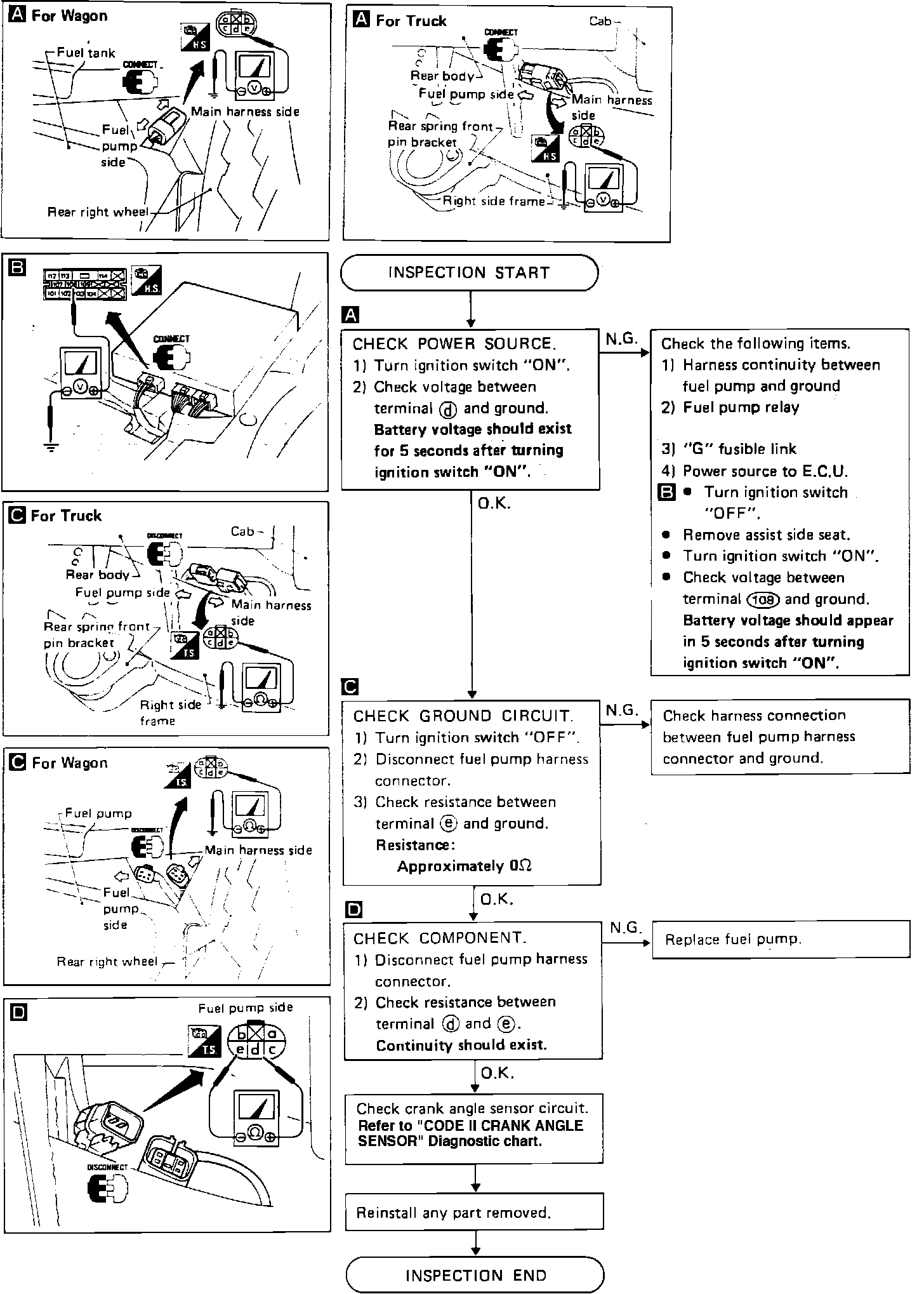

Fuel Pump Circuit Diagnostic Chart:
CIRCUIT TEST IMAGE

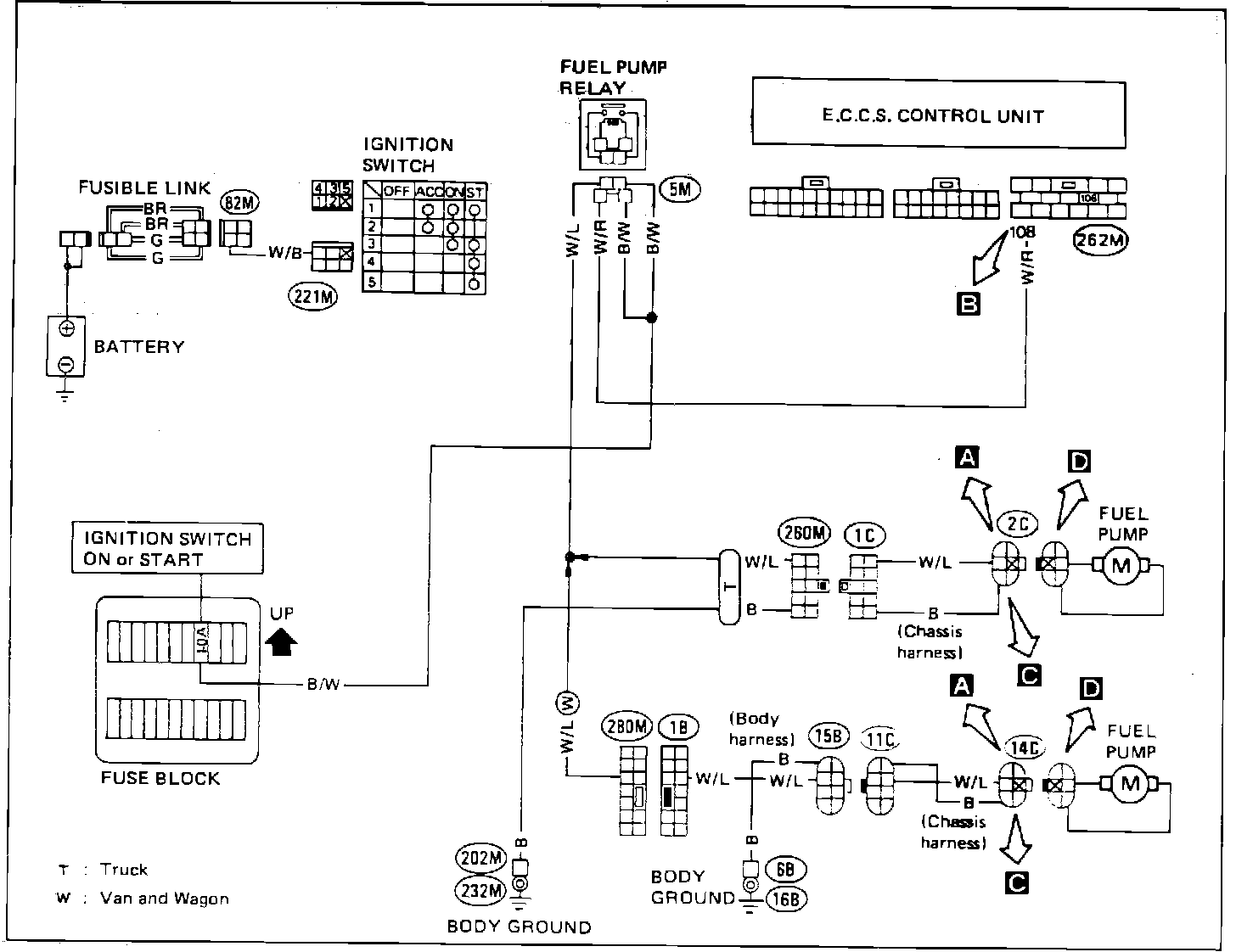

Circuit Diagram:
CIRCUIT DIAGRAM IMAGE
