Radiator Cooling Fan Temperature Sensor / Switch: Testing and Inspection

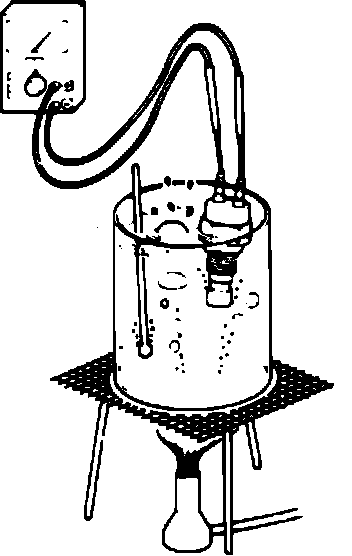

Fig. 28 Testing Thermo Switch:

1. Remove thermo switch/sensor, refer to COMPONENT R&R PROCEDURES/THERMO SWITCH/SENSOR.
2. Connect suitable ohmmeter across switch terminals, then immerse lower part of switch in water, Fig. 28. Ohmmeter should indicate an open circuit.
3. Place thermometer in water and heat. When water temperature reaches approximately 185°F, switch contacts should close and the ohmmeter should indicate continuity.
4. If switch does not operate properly, replace it.
