Inhibitor Switch Check

INHIBITOR SWITCH CHECK

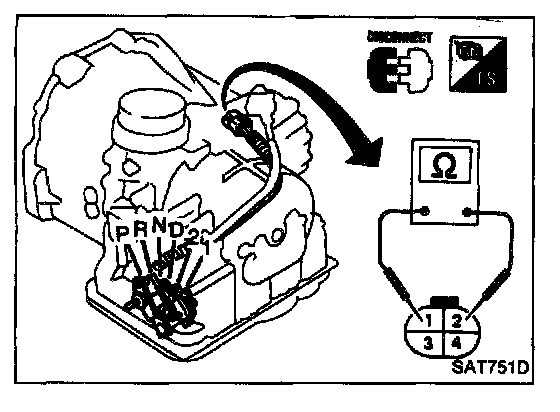

1. Disconnect inhibitor switch harness connector.

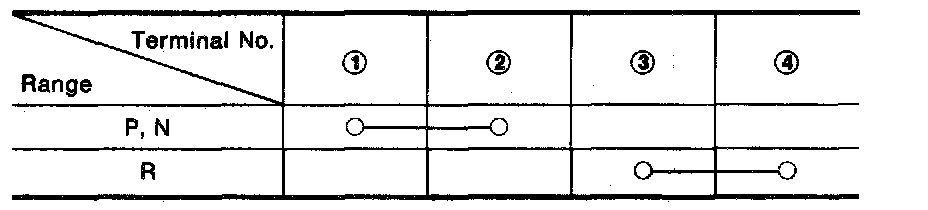

2. Check continuity in "N", "P" and "R" ranges.
3. With manual shaft held in "N" range, turn manual shaft an equal amount in both directions to see if current flow ranges are nearly the same. (When manual lever is in each position, continuity normally exists within 1.5° in either direction.) If current flows outside normal range, or if normal flow range is out of specifications, properly adjust inhibitor switch.
