Home >> Nissan-Datsun >> 1993 >> Altima L4-2.4L (KA24DE) >> Repair and Diagnosis >> Cruise Control >> Cruise Control Servo >> Testing and Inspection

Cruise Control Servo: Testing and Inspection

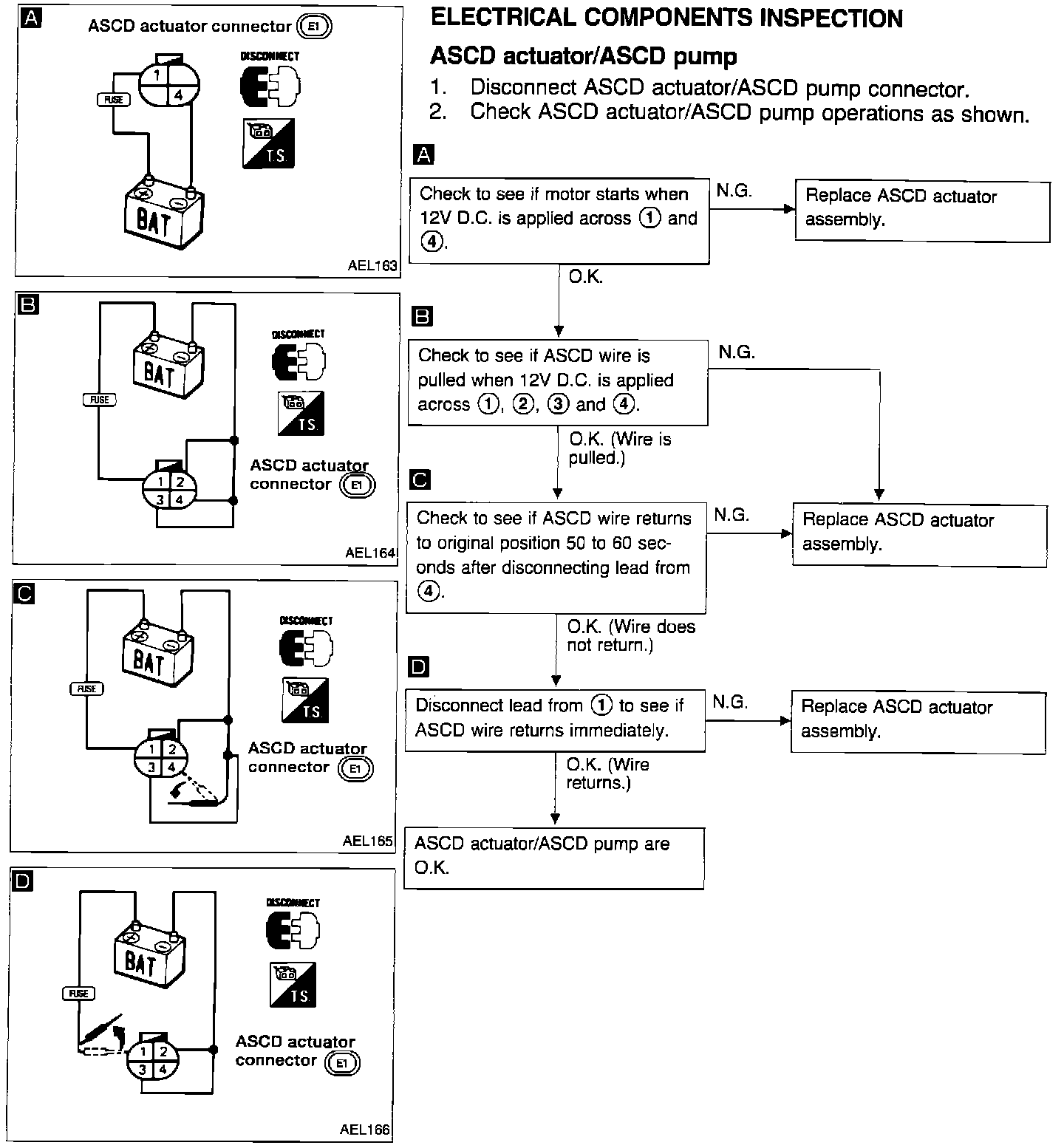

Fig. 9 Cruise Control Electrical Components Inspection:
