Home
>>
Nissan-Datsun
>>
1993
>>
Altima L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Powertrain Management
>>
Fuel Pump
>>
System Specifications
System Specifications

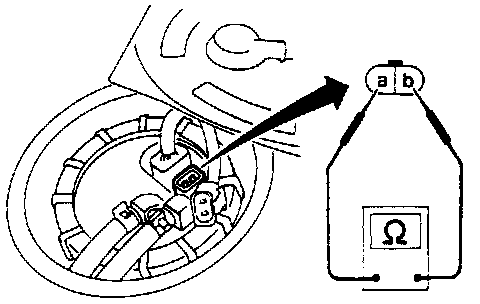

Fuel Pump Terminals:
Fuel Pump
Resistance between terminals A and B:
0.5 Ohms
