Vacuum and Vapor Hose Diagrams

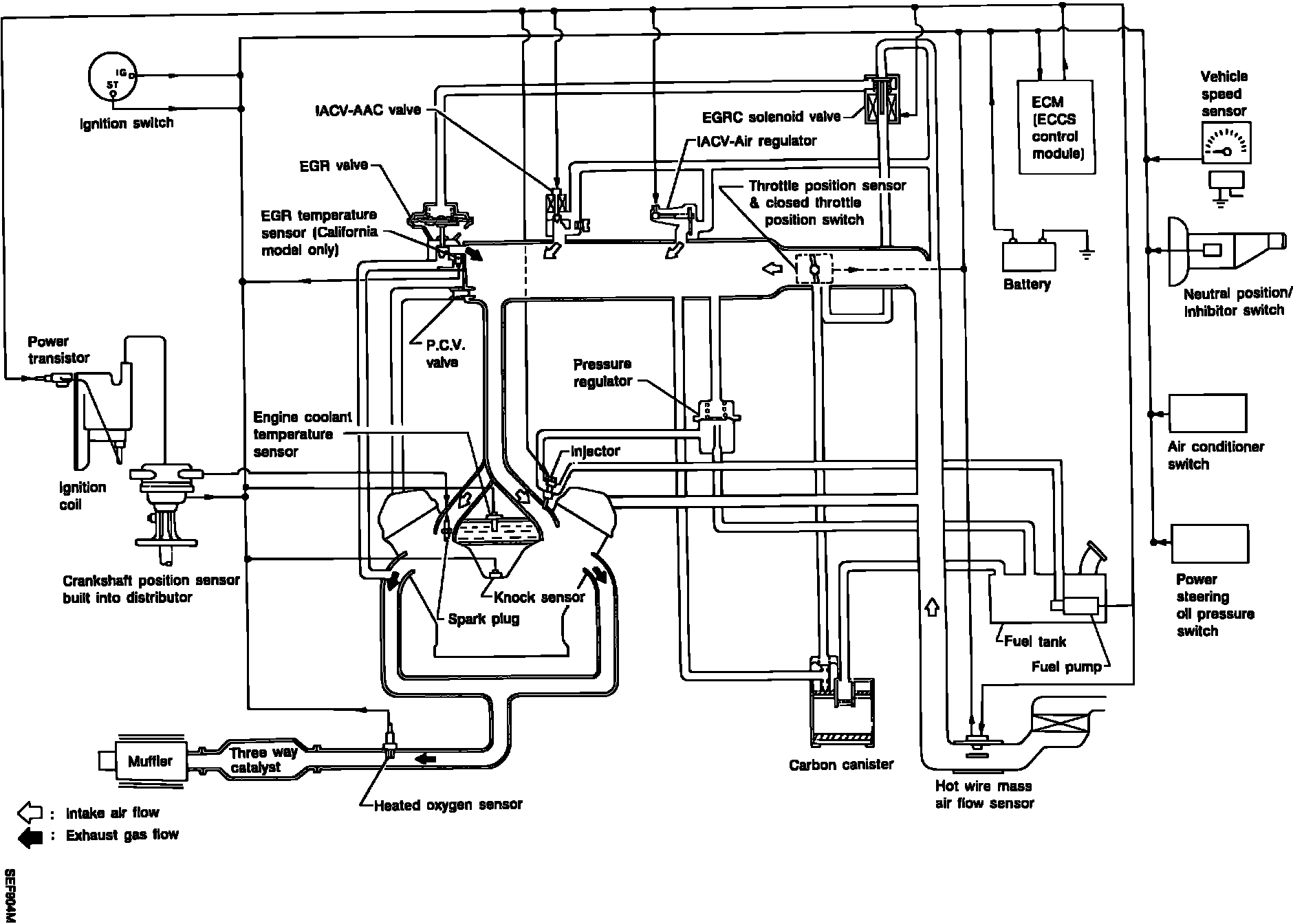

Vacuum And Electrical System Diagram:

GENERAL SYSTEM SCHEMATIC

Vacuum Routing And Connections:

VACUUM FITTINGS AND CONNECTIONS
