CONSULT Inspection Procedure

CONSULT INSPECTION PROCEDURE
1. Turn off ignition switch.

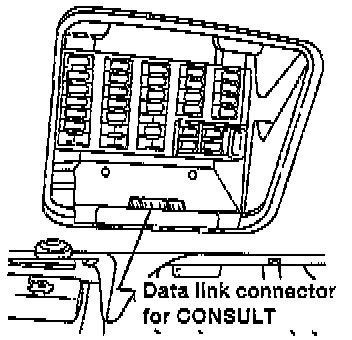

2. Connect "CONSULT" to data link connector for CONSULT. (Data link connector for CONSULT is located behind the fuse box cover.)




3. Turn on ignition switch.

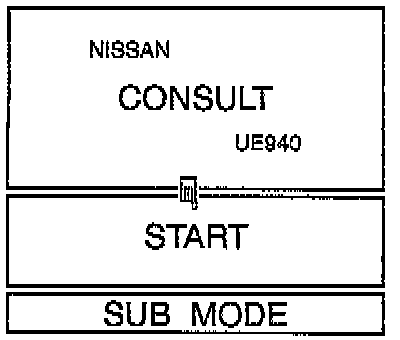

4. Touch "START".

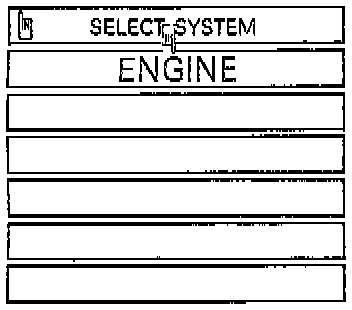

5. Touch "ENGINE".

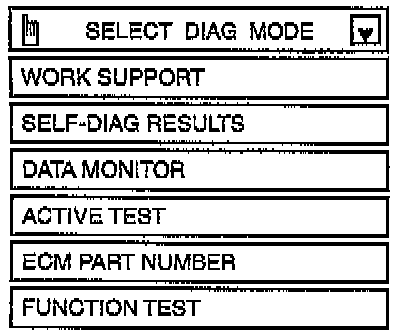

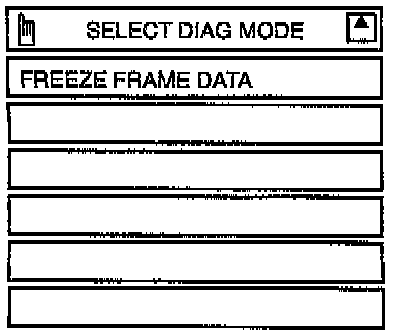

6. Perform each diagnostic test mode according to each service procedure.
For further information, see the CONSULT Operation Manual.
