Installation

INSTALLATION

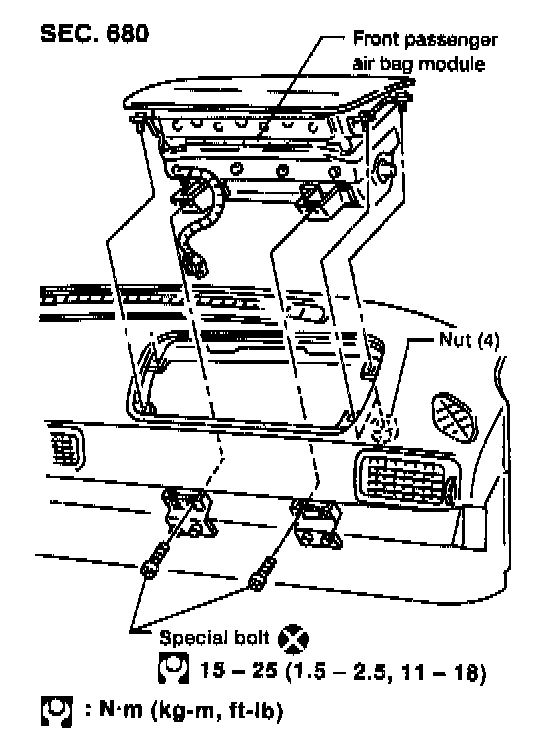

1. Install front passenger air bag module in instrument panel.
- Ensure that the harness is not caught between air bag module and support bracket.
- Tighten four nuts.

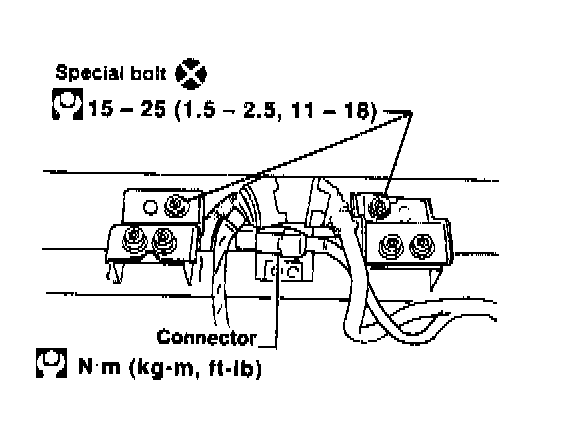

- Install two new special bolts using TAMPER RESISTANT TORX (Size T50).





2. Connect front passenger air bag module connector to air bag harness.
3. Install glove box and glove box lid.
