Removal

REMOVAL

CAUTION:
- Before servicing SRS, turn the ignition switch OFF, disconnect both battery cables and wait for at least 3 minutes.
- Always work from the side of an air bag module.

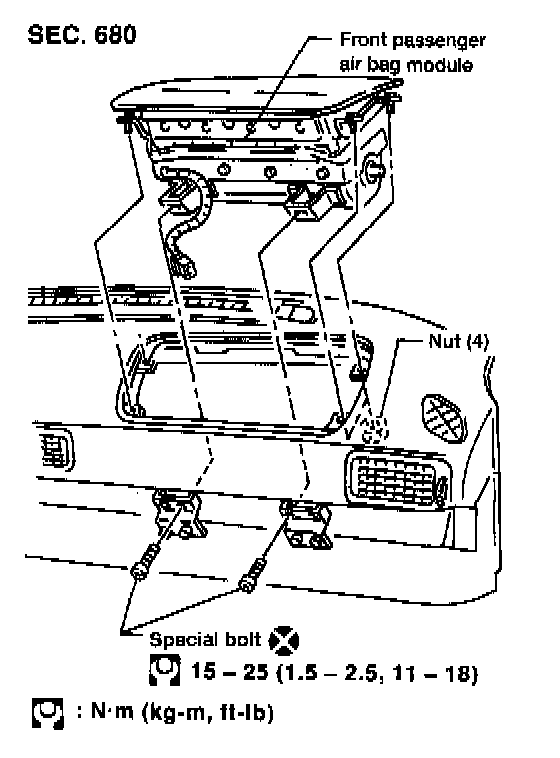

1. Remove glove box lid and glove box.





2. Disconnect front passenger air bag module connector.

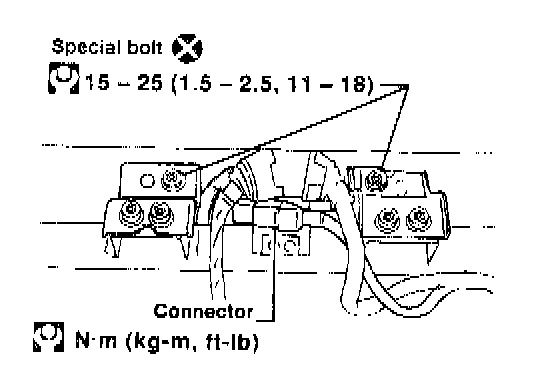

3. Using the TAMPER RESISTANT TORX (Size T50), remove two special bolts.





4. Remove four nuts.
5. Remove front passenger air bag module.
- Air bag module is heavy and should be supported using both hands during removal.

CAUTION:
- Always place air bag module with pad side facing upward.
- Do not attempt to disassemble air bag module.
- The special bolts are coated with a bonding agent. Do not use old bolts after removal; replace with new coated bolts.
- Do not insert any foreign objects (screwdriver, etc.) into air bag module connector.

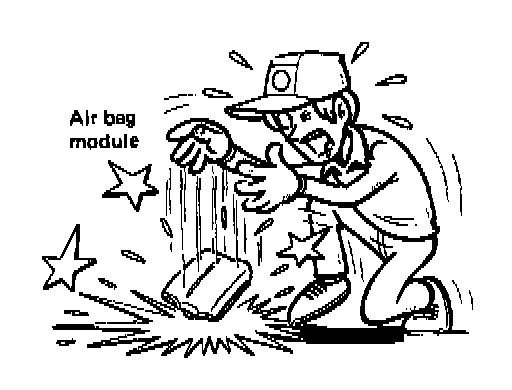

- Replace air bag module if it has been dropped or sustained an impact.
- Do not expose the air bag module to temperatures exceeding 90°C (194°F).
- Do not allow oil, grease or water to come in contact with the air bag module.
