Throttle Position Sensor Circuit Check

Description

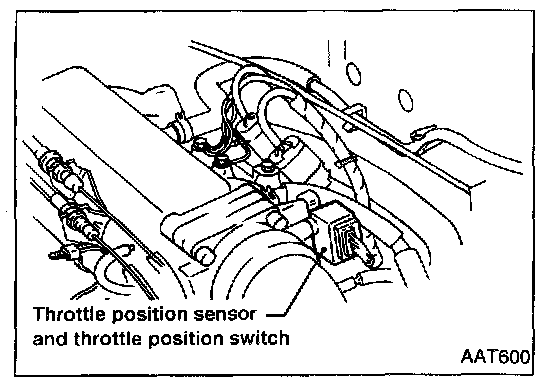

The throttle position sensor detects the throttle valve position and sends a signal to the A/T control unit.




Diagnostic Trouble Code (DTC) confirmation procedure
After the repair, perform the following procedure to confirm the malfunction is eliminated.




With CONSULT
1. Start engine.

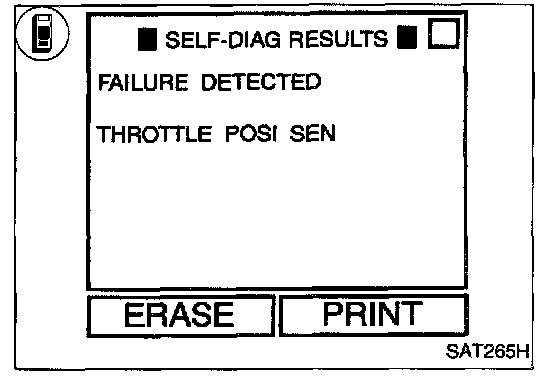

2. Select "SELF-DIAG RESULTS" mode with CONSULT.
3. Drive vehicle under the following conditions:
Shift lever in D, vehicle speed higher than 10 KPH (6 MPH), throttle opening greater than 1/2 of the full throttle position and driving for more than 3 seconds.

OR




With Generic Scan Tools
1. Start engine.
2. Drive vehicle under the following conditions:
Shift lever in D, vehicle speed higher than 10 KPH (6 MPH), throttle opening greater than 1/2 of the full throttle position and driving for more than 3 seconds.

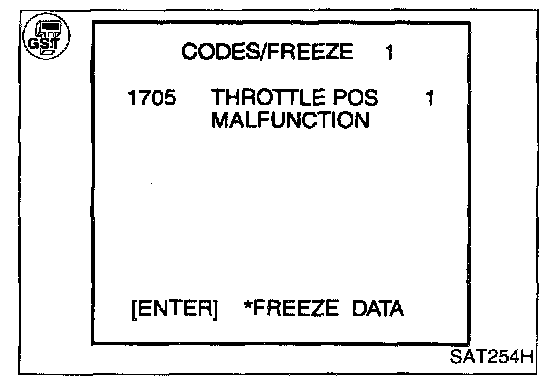

3. Select "MODE 3" with GST.

OR




Without Scan Tools
1. Start engine.
2. Drive vehicle under the following conditions:
Shift lever in D, vehicle speed higher than 10 KPH (6 MPH), throttle opening greater than 1/2 of the full throttle position and driving for more than 3 seconds.

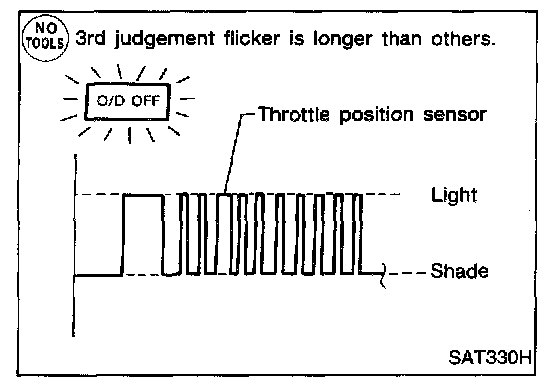

3. Perform self-diagnosis. Displaying & Reading Trouble Codes
