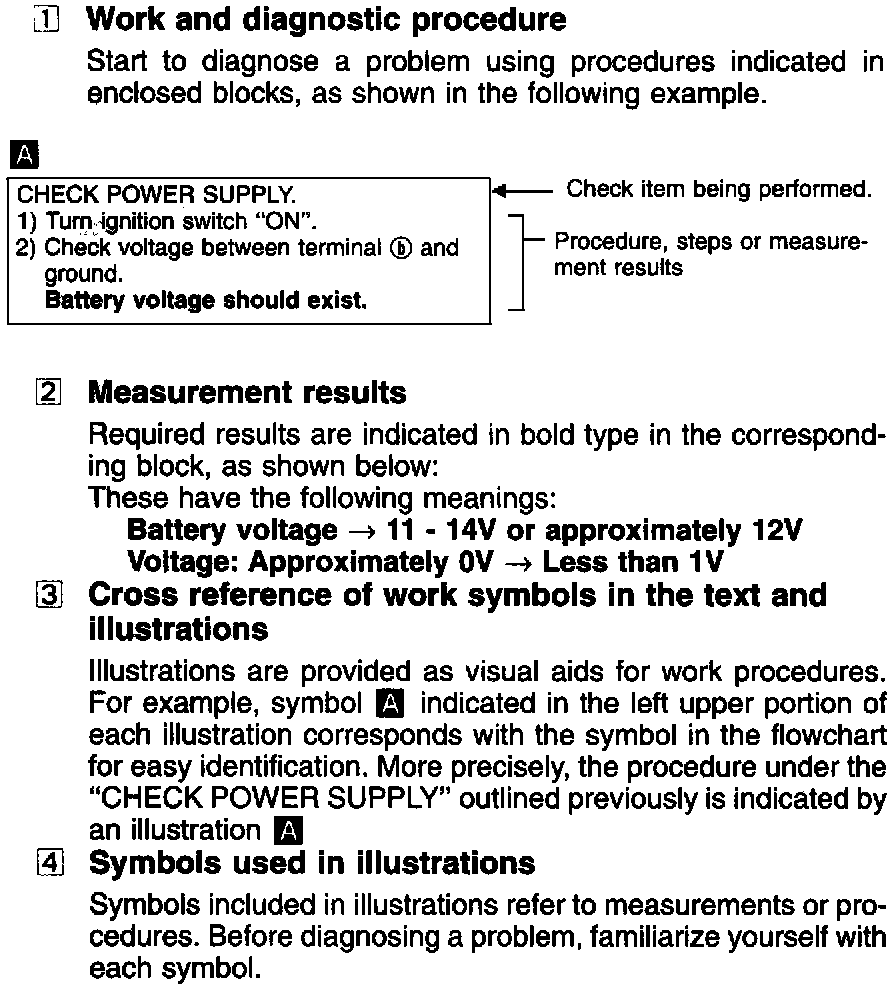

How to Follow the Flow Chart

Work And Diagnostic Procedure:

1. Work and diagnostic procedure

Start to diagnose a problem using procedures indicated in enclosed blocks, as shown in the following example.

2. Measurement results

Required results are indicated in bold type in the corresponding block, as shown below:

These have the following meanings:
Battery Voltage 11-14 Volts or approximately 12 Volts
Voltage: Approximately 0 Volts less than 1 Volt

3. Cross reference of work symbols in the text and illustrations

Illustrations are provided as visual aids for work procedures. For example, symbol A indicated in the left upper portion of each illustration corresponds with the symbol in the flow chart for easy identification. More precisely, the procedure under the "CHECK POWER SUPPLY" outlined previously is indicated by an illustration A.

4. Symbols used in illustrations

Symbols included in illustrations refer to measurements or procedures. Before diagnosing a problem, familiarize yourself with each symbol.
