Fuel Pump Control Unit
>>
Testing and Inspection
>>
Component Testing Procedure
Component Testing Procedure

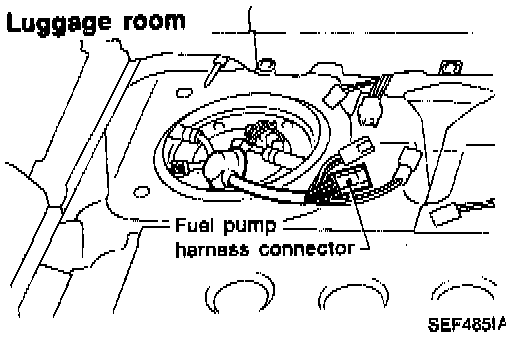

Fuel Pump Location:

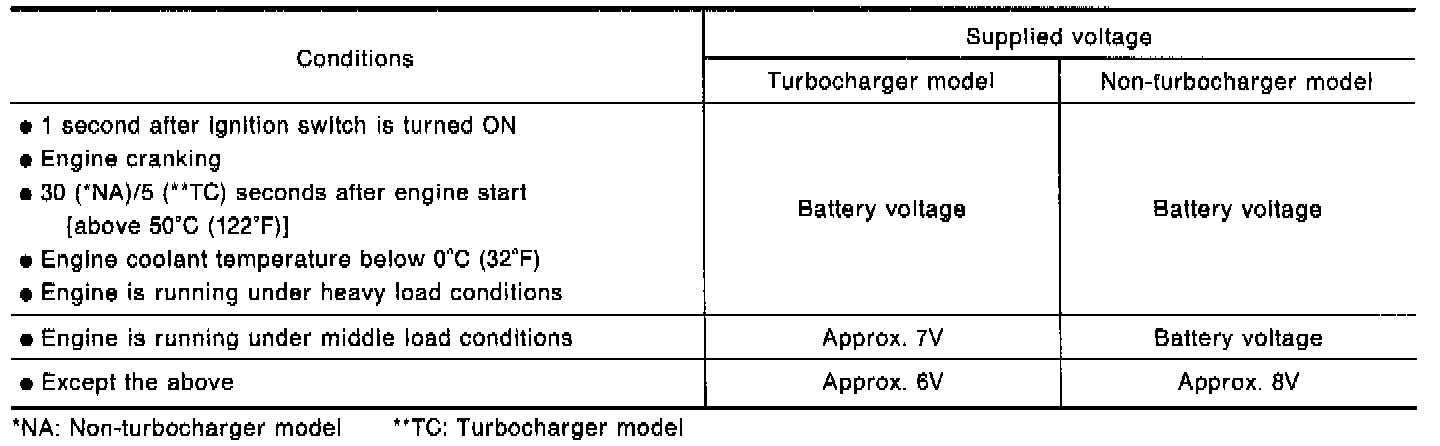

Fuel Pump Voltage Control:
Do test as described in image table, at fuel pump harness.
