Washer Nozzle Adjustment

Washer Nozzle Adjustment:

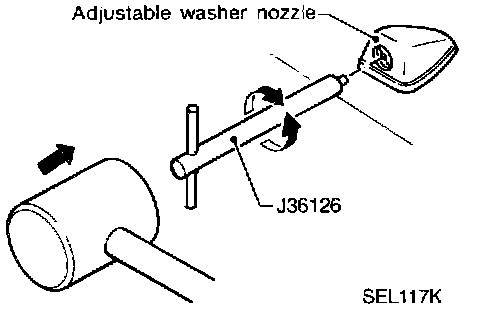

^ Adjust washer nozzle with J36126 as shown in the figure.

Before attempting to turn the nozzle, gently tap the end of the tool to free the nozzle. This will prevent "rounding out" the small female square in the center of the nozzle.
