Over - Rail Bed Liner RE-Positioning

1. Remove all cargo from the bed.

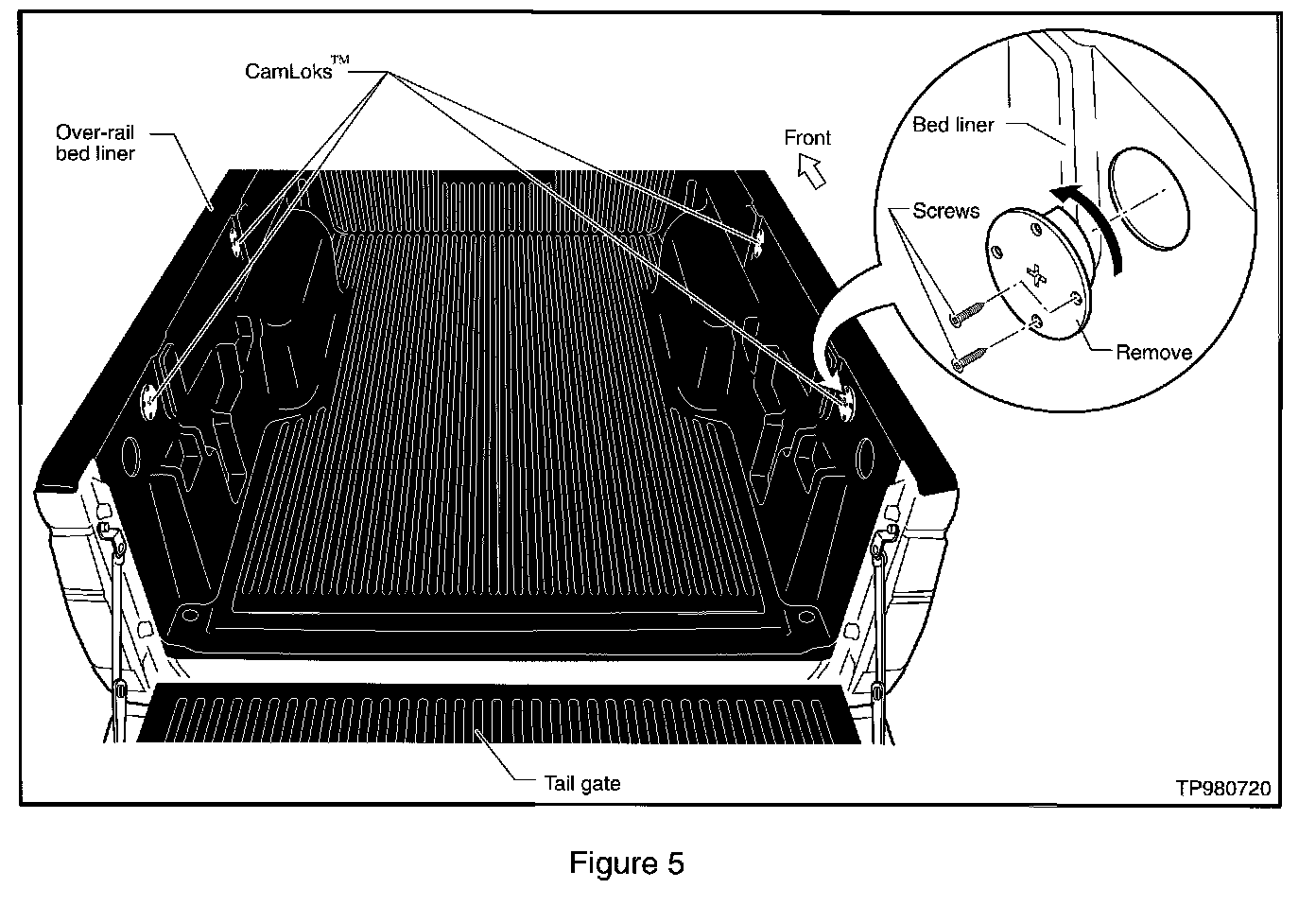

2. Remove the screws that secure the middle and rear side CamLoks (TM) (see Figure 5).

3. Remove four CamLoks (TM) by turning counterclockwise and pulling out (see Figure 5).





4. Re-position the upper rear portion of the bed liner towards the center of the bed to gain access to the tail lamp mounting screws (see Figure 6).

5. Once the tail lamp harness replacement is complete, place the bed liner in its original position.

6. Re-install the four CamLoks(TM) and their mounting screws.
