Coolant Temperature Sensor/Switch (For Computer)

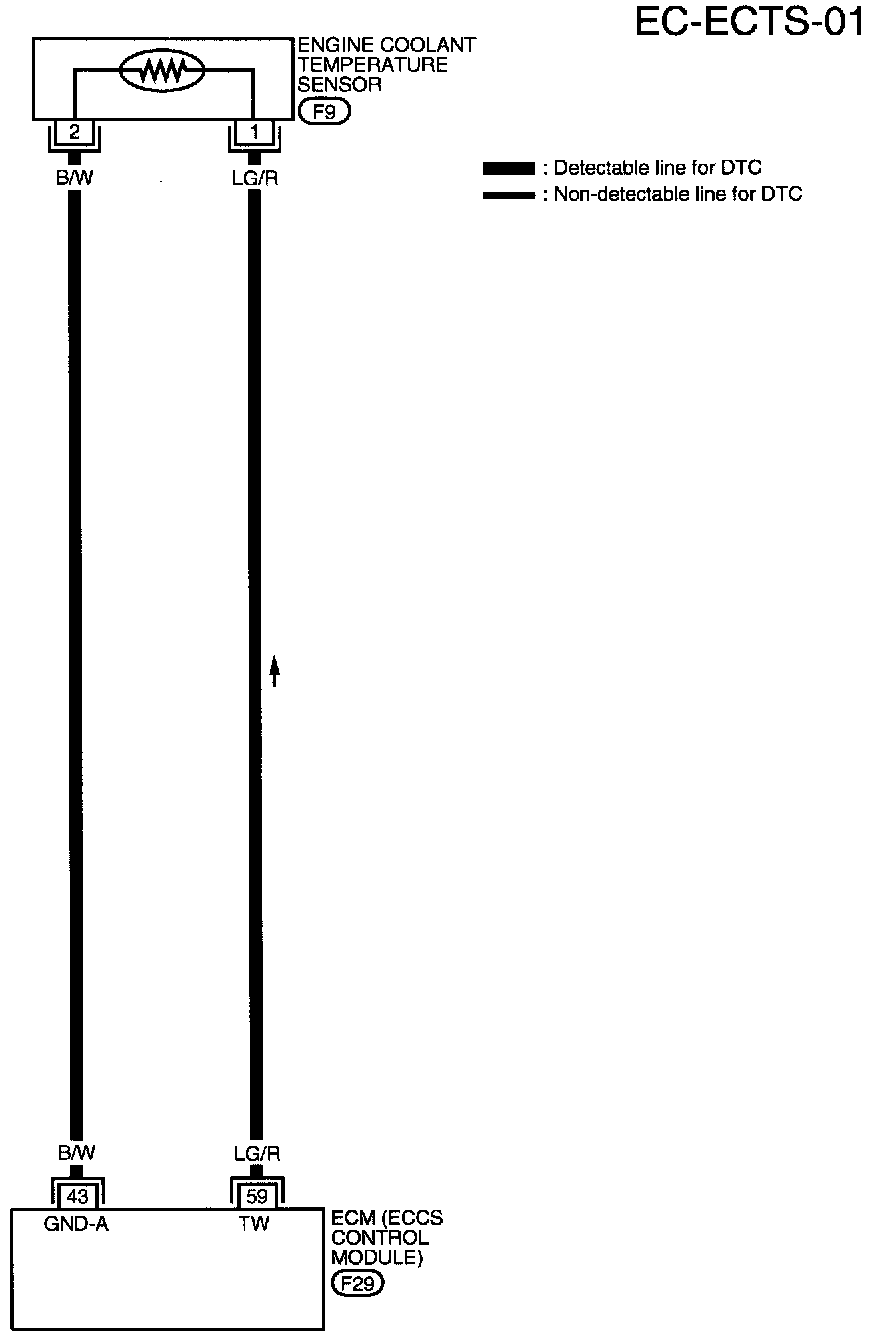

EC-ECTS-01 Engine Coolant Temperature Sensor (ECTS) (DTC: P0115):





Circuit Diagrams

Engine Coolant Temperature Sensor (ECTS) (DTC: P0115):

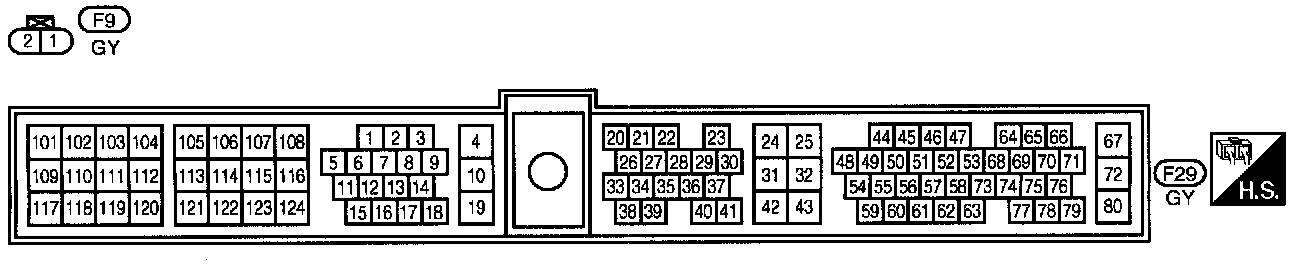

Engine Coolant Temperature Sensor (ECTS) (Circuit) Circuit Connectors
