Home >> Nissan-Datsun >> 1998 >> Frontier 2WD L4-2.4L (KA24DE) >> Repair and Diagnosis >> Locations >> Component Locations >> Modules >> Passenger Air Bag Module

Passenger Air Bag Module

BR-ABS-01 Anti-lock Brake System (Part 1 Of 5):

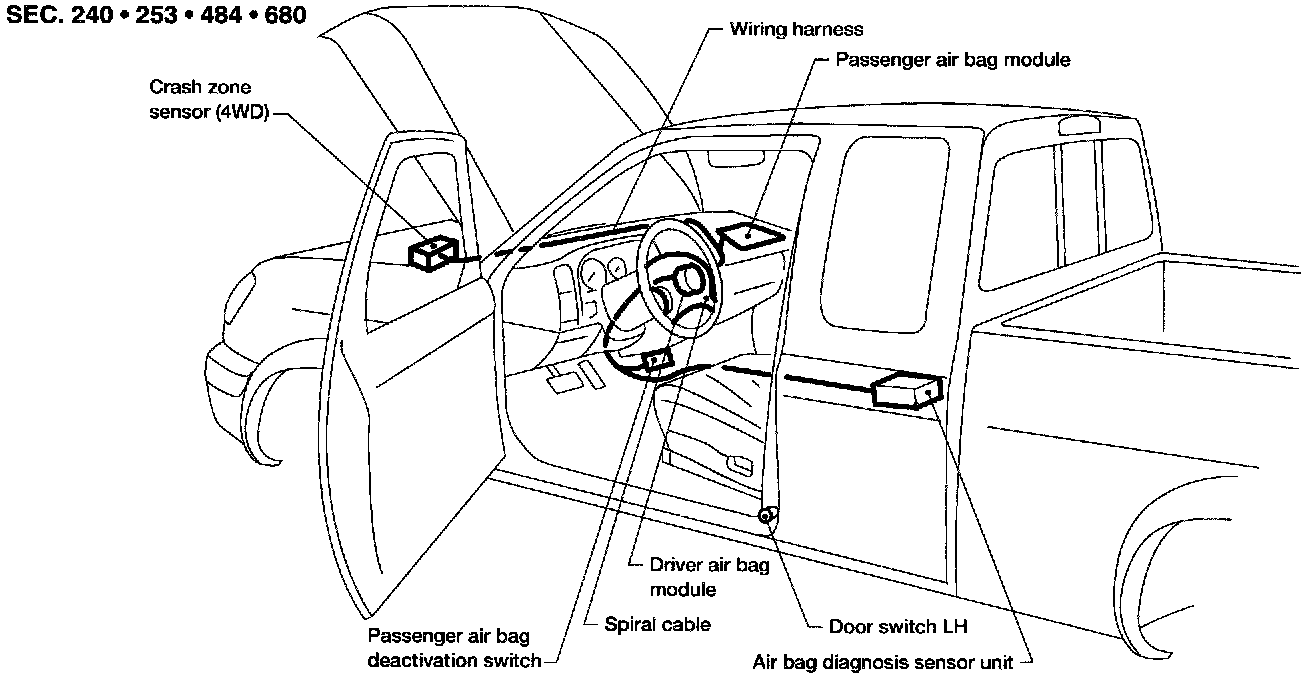

SRS Component Parts Location
