Male Terminal

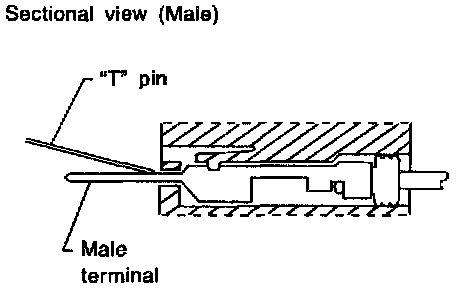

Probing From Terminal Side - Male Terminal:




Carefully probe the contact surface of each terminal using a "T" pin.

Do not bend terminal.
