General Specifications

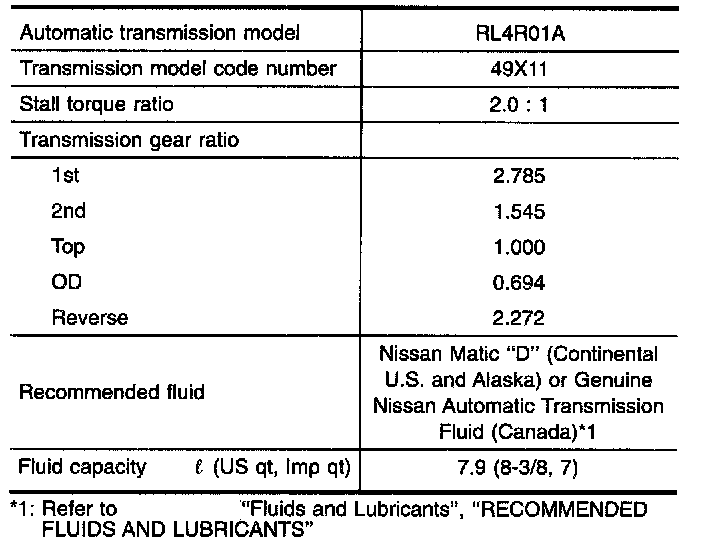

GENERAL SPECIFICATIONS

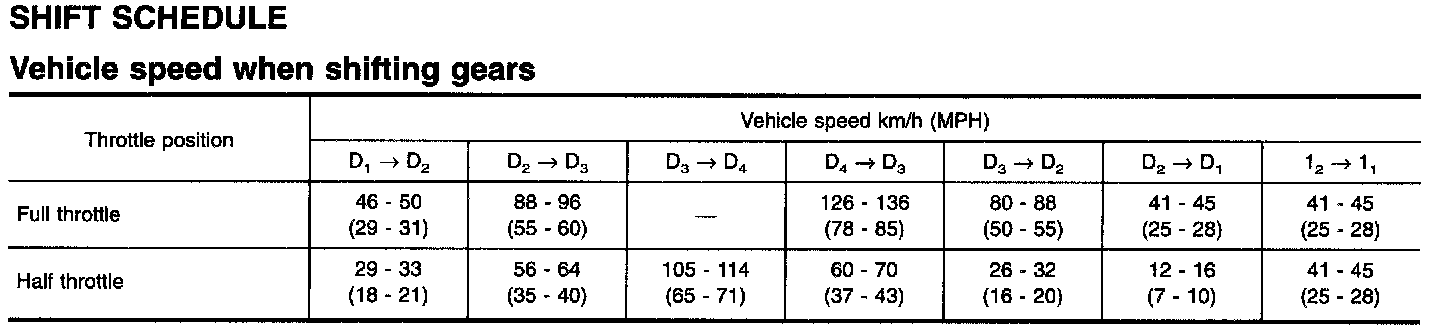

SHIFT SCHEDULE

Vehicle speed When Shifting Gears

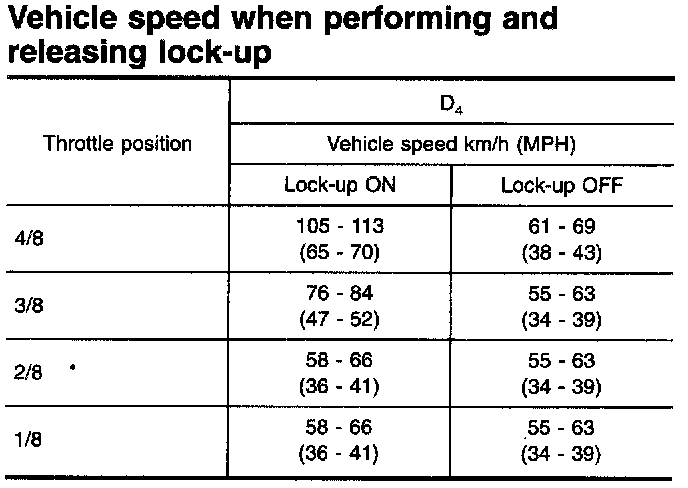

Vehicle Speed When Performing And Releasing Lock-up

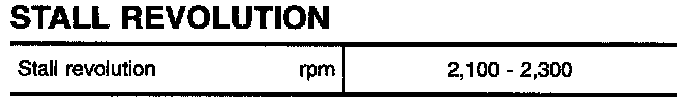

STALL REVOLUTION

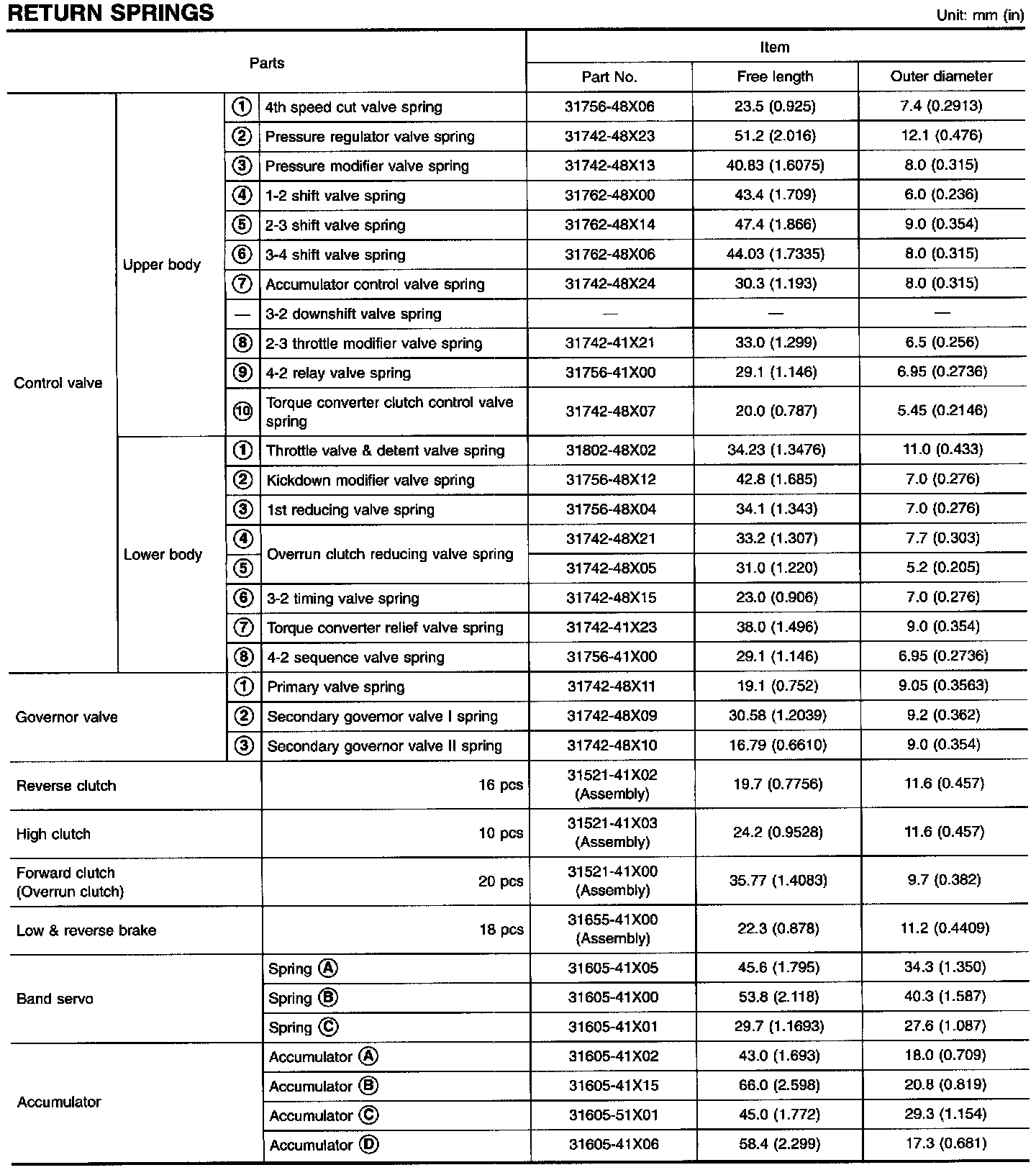

RETURN SPRINGS

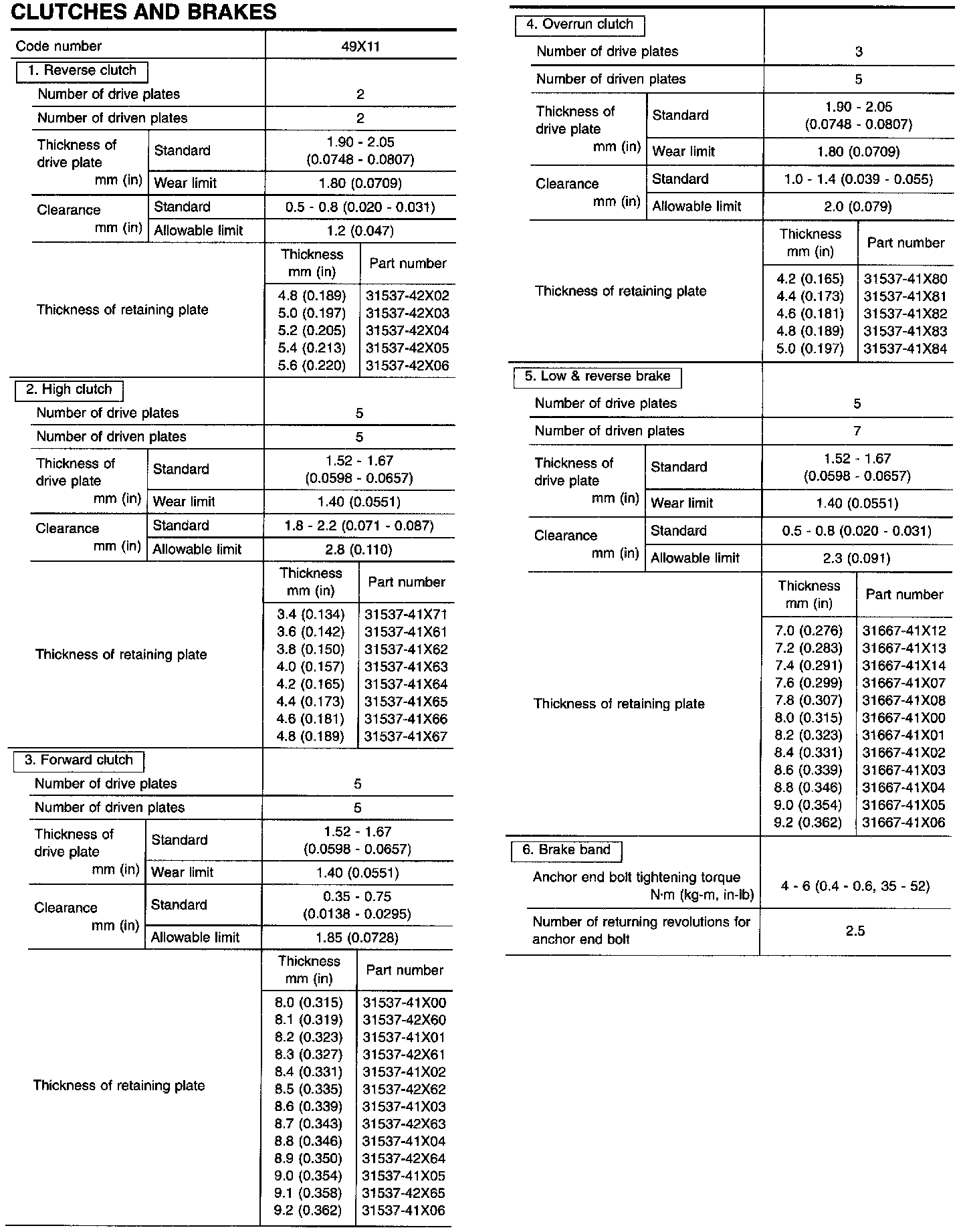

CLUTCHES AND BRAKES

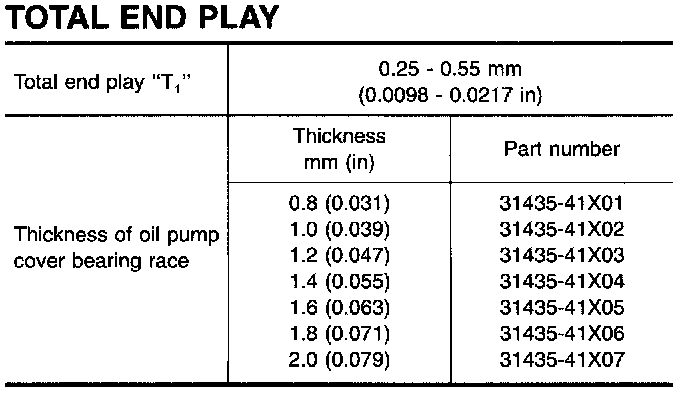

TOTAL END PLAY

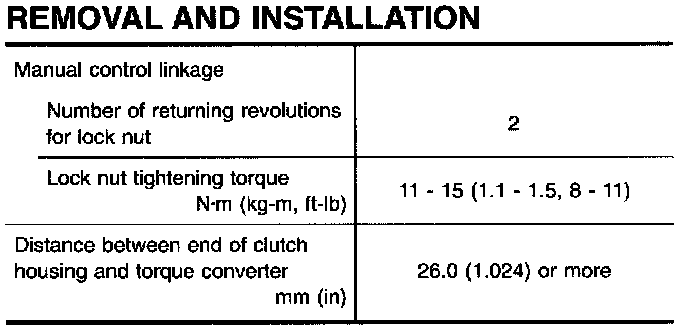

REMOVAL AND INSTALLATION
