Starting System: Service and Repair

Removal And Installation:




REMOVAL
1. Remove engine undercover.

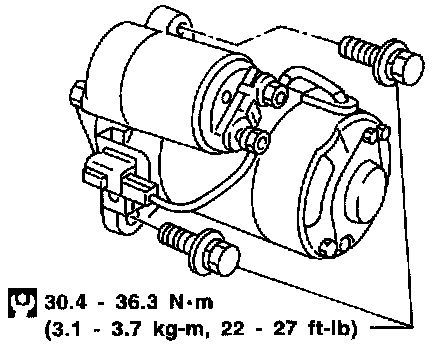

2. Remove two bolts and starter.

INSTALLATION
To install, reverse the removal procedure.
