A/T Fluid Level and Condition Check

A/T Fluid Check

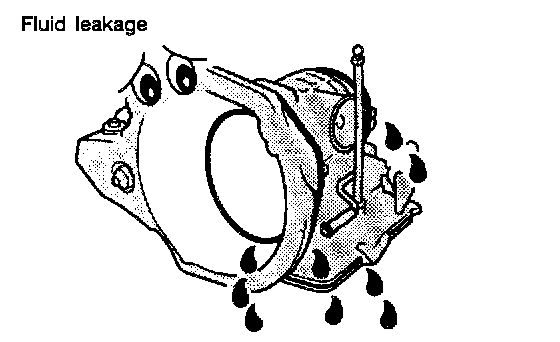

FLUID LEAKAGE CHECK
1. Clean area suspected of leaking. - for example, mating surface of converter housing and transmission case.




2. Start engine, apply foot brake, place selector lever in "D" position and wait a few minutes.
3. Stop engine.




4. Check for fresh leakage.







FLUID CONDITION CHECK
