Keyless Entry

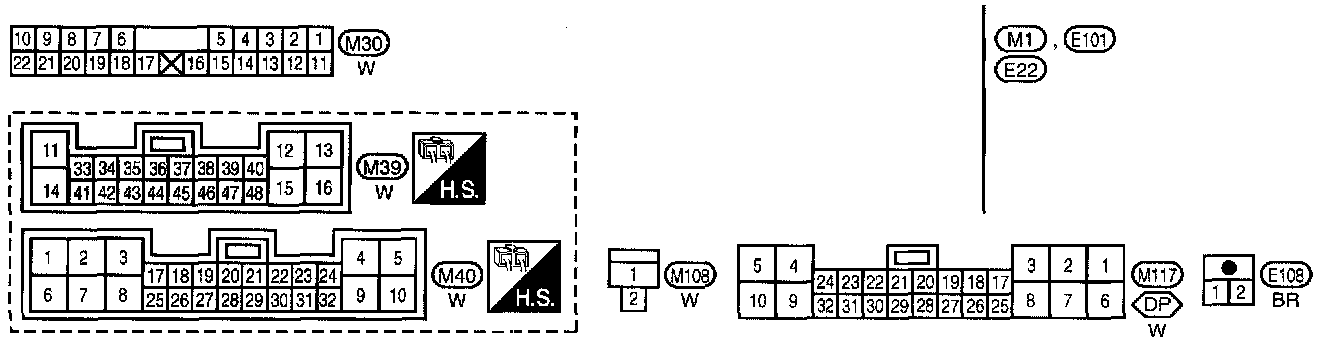

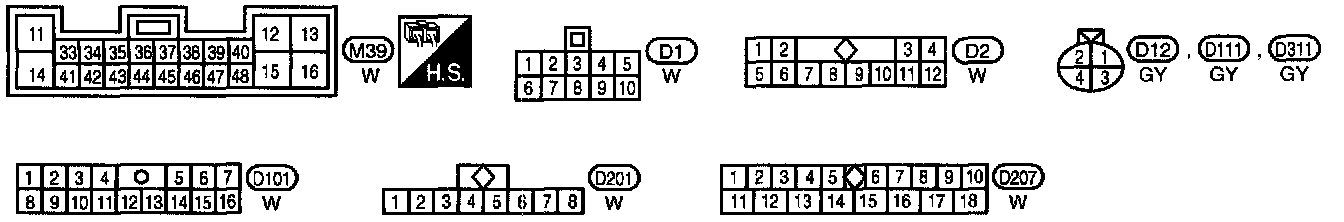

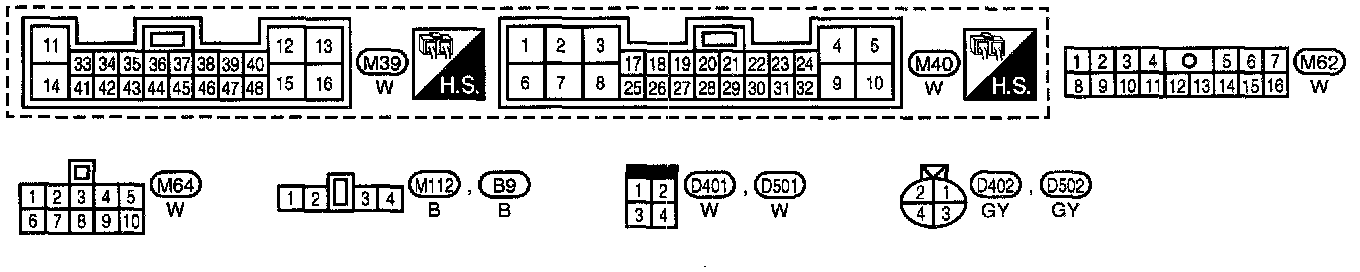

Multi-Remote Control System Circuit Connectors

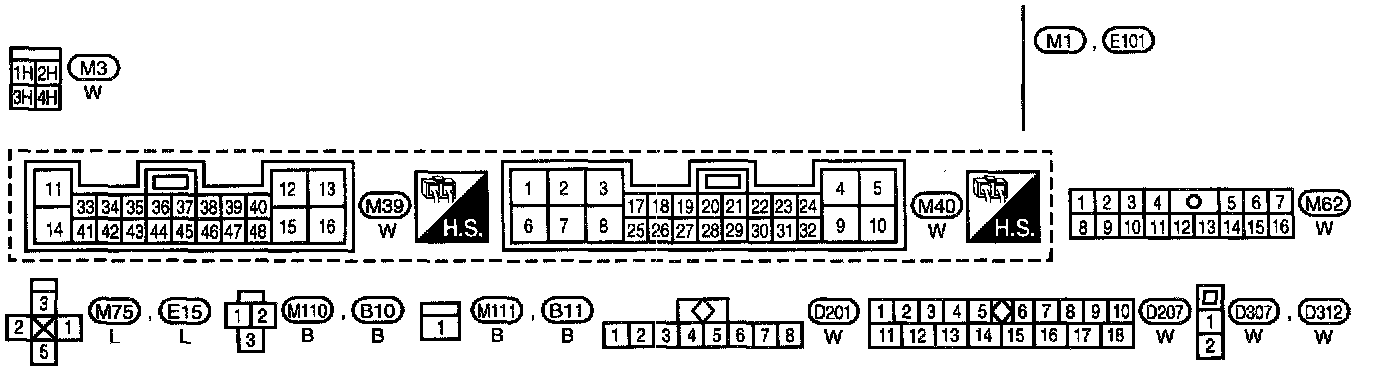

M1, E101 Super Multiple Junction Terminal Arrangement

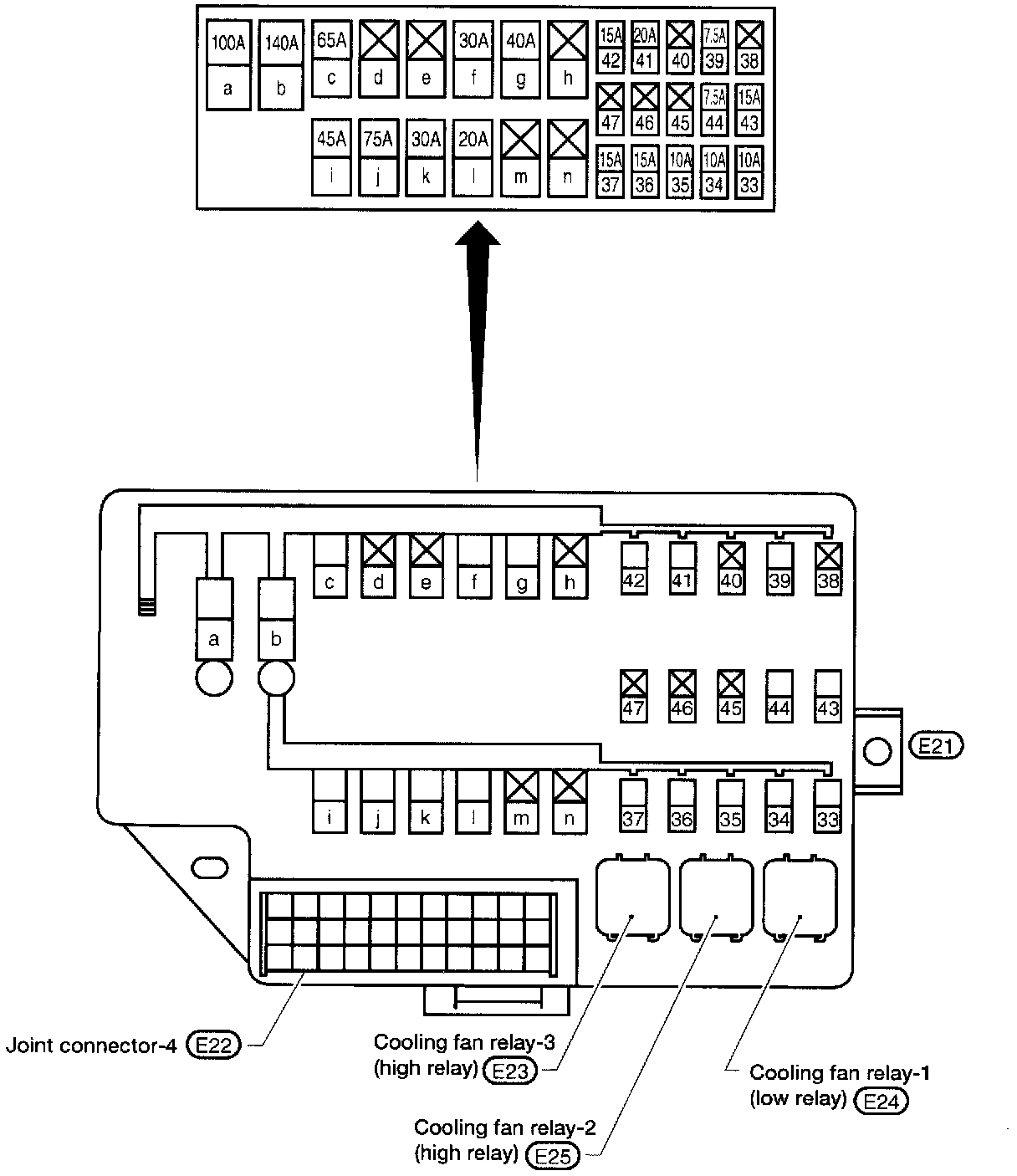

E22 Fuse and Fusible Link Box Terminal Arrangement

E22 Joint Connector Terminal Arrangement
