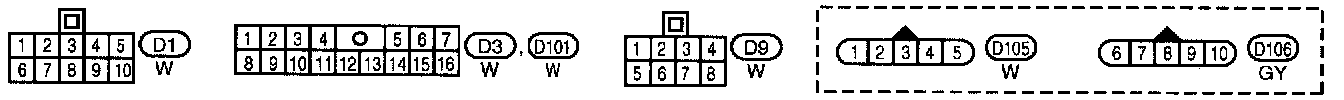

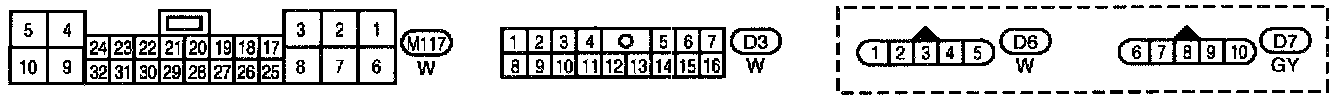

Power Seat Control Module

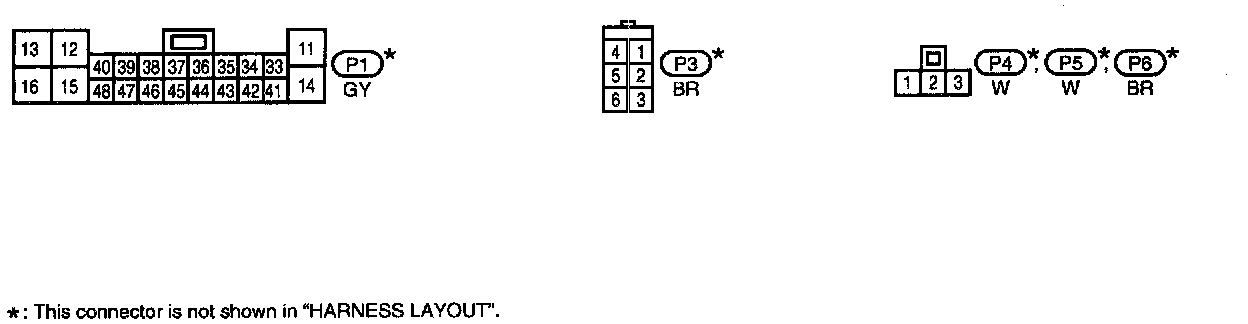

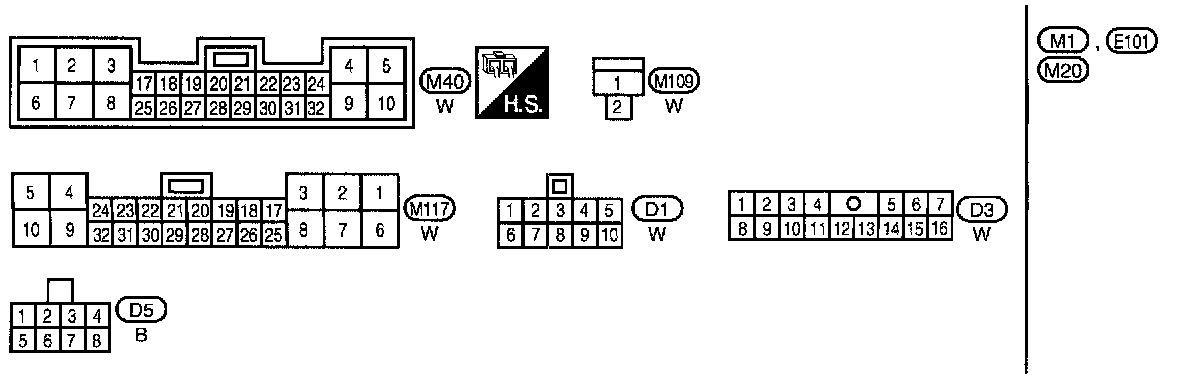

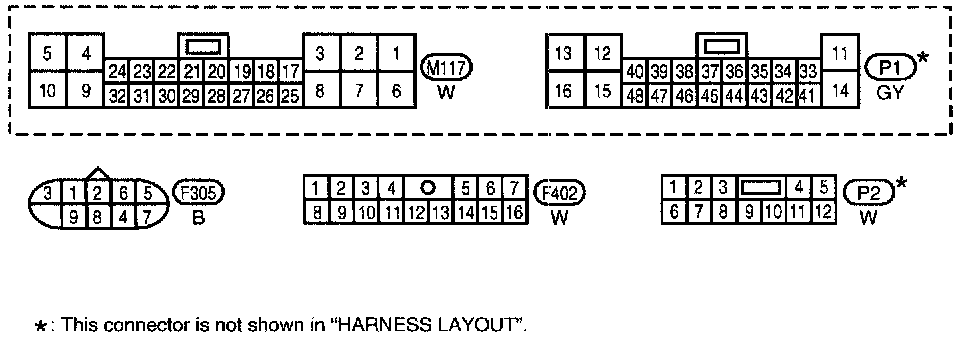

Automatic Drive Positioner Circuit Connectors

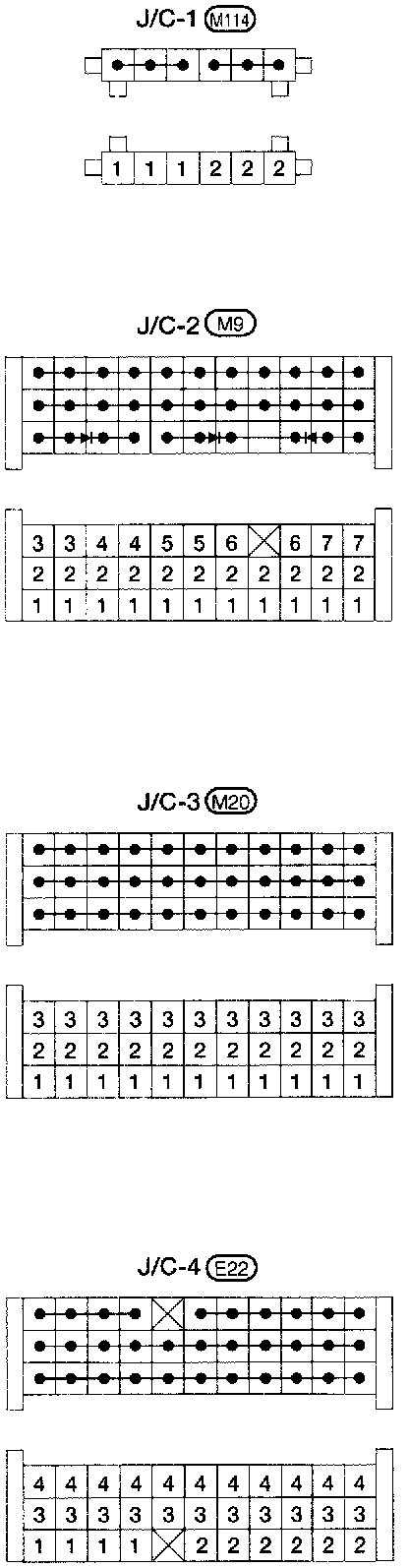

M1, E101 Super Multiple Junction Terminal Arrangement





M20 Joint Connector Terminal Arrangement
