Connector Views
>>
Windows
Windows
Power Window Circuit Connectors

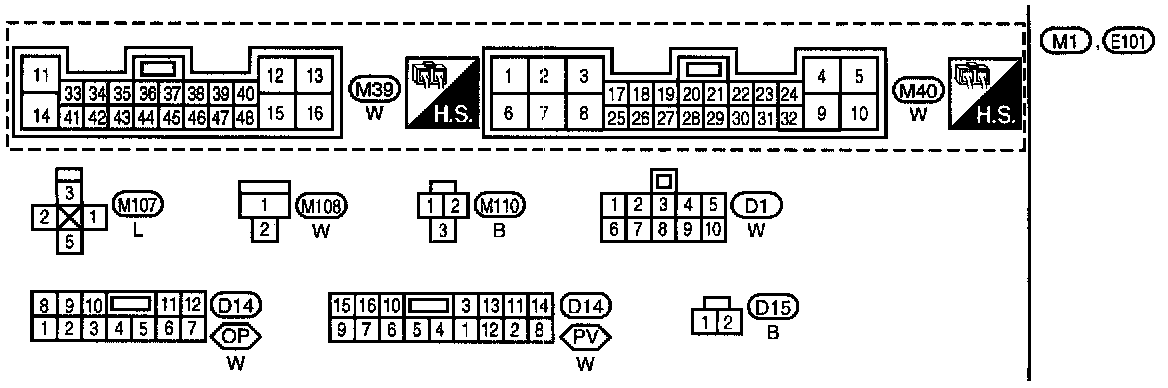

M1, E101 Super Multiple Junction Terminal Arrangement
